IQS263BEV02

Obsolete

Azoteq (Pty) Ltd

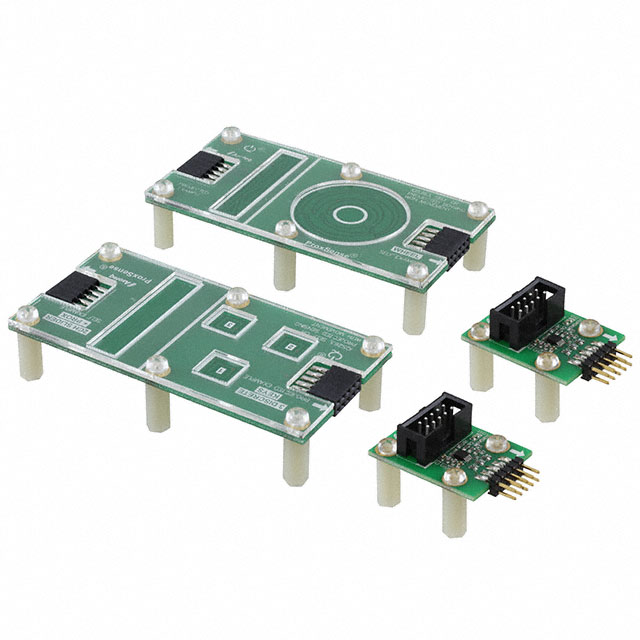

IQS263 EVALUATION KIT 2

Search across all available documentation for this part.

Obsolete

Azoteq (Pty) Ltd

IQS263 EVALUATION KIT 2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IQS263 IQ Switch®, ProxSense® Touch, Capacitive Sensor Evaluation Board

Technical documentation and resources

Specification	IQS263BEV02	IQS263 Series

Current - Supply	-	80 - 305 µA
Interface	-	I2C
Mounting Type	-	Surface Mount
Number of Inputs	-	3
Operating Temperature	-	85 °C
Operating Temperature	-	-20 C
Package / Case	-	10-WFDFN Exposed Pad, 10-MSOP, 10-TFSOP
Package / Case	-	3 mm
Package / Case	-	0.118 in
Proximity Detection	-	True
Resolution	-	8 b
Sensing Range	Slider, Scroll Wheel, 3 Buttons/Keys	Slider, Scroll Wheel, 3 Buttons/Keys
Sensor Type	Touch, Capacitive	Touch, Capacitive
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	10-DFN (3x3), 10-MSOP
Type	-	Slider, Wheel, Buttons
Utilized IC / Part	IQS263	IQS263
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.8 V	1.8 V

Part	Supplier Device Package	Number of Inputs	Resolution	Current - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Supplied Contents	Utilized IC / Part	Sensor Type	Sensing Range	Package / Case [x]	Package / Case [x]
Azoteq (Pty) Ltd IQS263B-0-DNR	10-DFN (3x3)	3	8 b	305 µA	3.6 V	1.8 V	Buttons, Slider, Wheel	10-WFDFN Exposed Pad	Surface Mount	85 °C	-20 C	I2C
Azoteq (Pty) Ltd IQS263BEV02					3.6 V	1.8 V							Board(s)	IQS263	Touch, Capacitive	3 Buttons/Keys, Scroll Wheel, Slider
Azoteq (Pty) Ltd IQS263B-0-MSR	10-MSOP	3	8 b	80 mA	3.6 V	1.8 V	Buttons, Slider, Wheel	10-MSOP, 10-TFSOP	Surface Mount	85 °C	-20 C	I2C					3 mm	0.118 in
