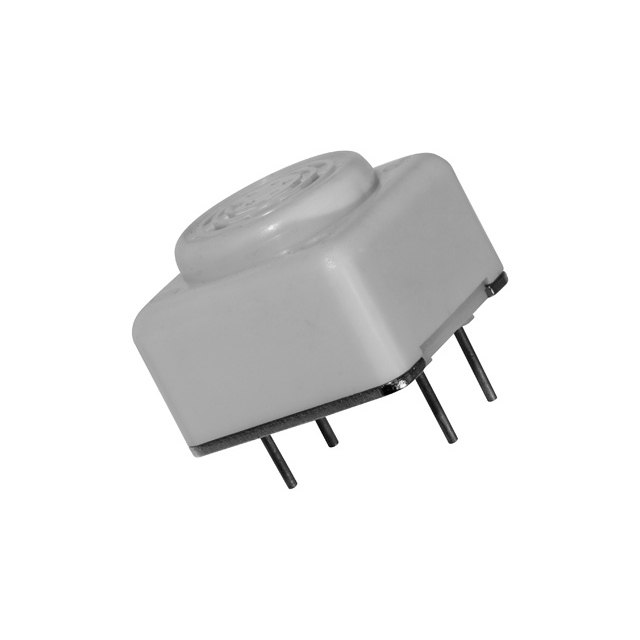

Specification	IE260424-1

Current - Supply	50 mA
Driver Circuitry	Indicator, Internally Driven
Frequency	400 Hz
Height - Seated (Max)	0.776 in
Input Type	DC
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Port Location	Top
Size / Dimension Length	1.024 in
Size / Dimension Width	1.024 in
Sound Pressure Level (SPL)	95 dB
Technology	Electromechanical
Termination	PC Pins
Voltage - Rated	24 VAC
Voltage Range (Max)	28 V
Voltage Range (Min)	20 VDC
