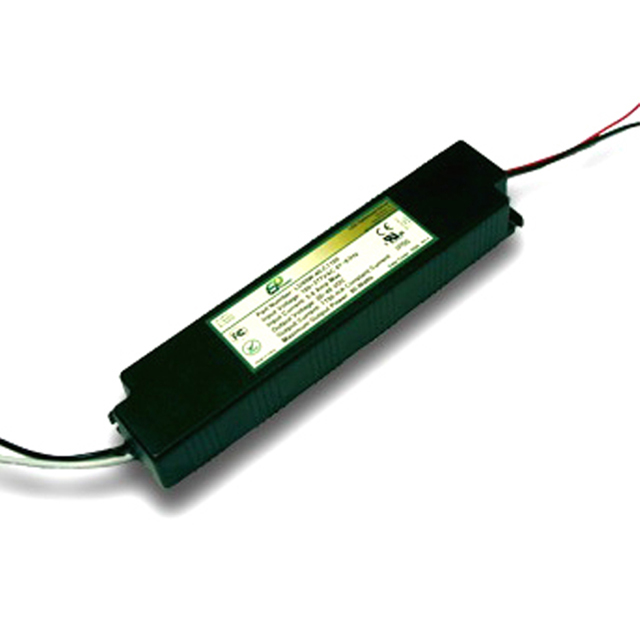

LD50W-36-C1400-RD

Active

EPtronics, Inc.

18~36V@1400MA, 0~10V DIM TO 0%

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LD50W-36-C1400-RD

Active

EPtronics, Inc.

18~36V@1400MA, 0~10V DIM TO 0%

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LD50W-36-C1400-RD	LD50W Series

Approval Agency	CE, FCC, cURus	CE, FCC, cURus
Current - Output (Max) [Max]	1.4 A	1.19 - 700 A
Dimming	-	Analog, PWM, Non-Dimmable
Dimming [Max] [custom]	10 V	10 V
Dimming [Min] [custom]	0 V	0 V
Efficiency	87 %	84 - 89 %
Features	SCP, OCP, OVP	SCP, OCP, OVP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	60 °C	50 - 60 °C
Operating Temperature [Min]	-40 °C	-40 - -30 ░C
Power (Watts)	50 W	50 W
Ratings	IP66	IP66
Size / Dimension [x]	183.9 mm	183.9 - 194.1 mm
Size / Dimension [x]	7.24 in	7.24 - 7.64 in
Size / Dimension [y]	42.9 mm	42.9 mm
Size / Dimension [y]	1.69 in	1.69 in
Size / Dimension [z]	0.98 in	0.98 in
Size / Dimension [z]	24.9 mm	24.9 mm
Standard Number	C22.2, UL 8750	C22.2, UL 8750
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Current	Constant Current, Constant Voltage
Voltage - Input (Max) [Max]	305 VAC	305 VAC
Voltage - Input (Min) [Min]	100 VAC	90 - 100 VAC
Voltage - Isolation	2500 V	2500 - 3750 V
Voltage - Output	-	12 - 24 V
Voltage - Output [Max]	36 V	29 - 142 V
Voltage - Output [Min]	18 V	12 - 55 V
Weight	0.713 lb	0.713 lb
Weight	323.46 g	323.46 g

LD50W Series

LED DRIVER AC/DC CC 12-36V 1.4A

Part	Mounting Type	Current - Output (Max) [Max]	Approval Agency	Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Dimming	Termination Style	Voltage - Input (Min) [Min]	Ratings	Efficiency	Topology	Voltage - Output [Min]	Voltage - Output [Max]	Number of Outputs	Voltage - Isolation	Voltage - Output	Weight	Weight	Standard Number	Dimming [Max] [custom]	Dimming [Min] [custom]
EPtronics, Inc. LD50W-36-C1400	Chassis Mount	1.4 A	CE, cURus, FCC	Constant Current	305 VAC	50 °C	-30 ░C	50 W	OCP, OVP, SCP	1.69 in	0.98 in	24.9 mm	42.9 mm	194.1 mm	7.64 in	Analog, PWM	Wire Leads	90 VAC	IP66	87 %	AC DC Converter	12 V	36 V	1	3750 V
EPtronics, Inc. LD50W-12	Chassis Mount	4.2 A	CE, cURus, FCC	Constant Voltage	305 VAC	60 °C	-30 ░C	50 W	OCP, OVP, SCP	1.69 in	0.98 in	24.9 mm	42.9 mm	194.1 mm	7.64 in	Non-Dimmable	Wire Leads	90 VAC	IP66	84 %	AC DC Converter			1	3750 kV	12 V	0.713 lb	323.46 g	C22.2, UL 8750
EPtronics, Inc. LD50W-42-C1190-RD	Chassis Mount	1.19 A	CE, cURus, FCC	Constant Current	305 VAC	60 °C	-40 °C	50 W	OCP, OVP, SCP	1.69 in	0.98 in	24.9 mm	42.9 mm	183.9 mm	7.24 in		Wire Leads	100 VAC	IP66	87 %	AC DC Converter	21 V	42 V	1	2500 V		0.713 lb	323.46 g	C22.2, UL 8750	10 V	0 V
EPtronics, Inc. LD50W-111-C0450-RD	Chassis Mount	450 mA	CE, cURus, FCC	Constant Current	305 VAC	60 °C	-40 °C	50 W	OCP, OVP, SCP	1.69 in	0.98 in	24.9 mm	42.9 mm	183.9 mm	7.24 in		Wire Leads	100 VAC	IP66	89 %	AC DC Converter	55 V	111 V	1	2500 V		0.713 lb	323.46 g	C22.2, UL 8750	10 V	0 V
EPtronics, Inc. LD50W-24	Chassis Mount	2.1 A	CE, cURus, FCC	Constant Voltage	305 VAC	60 °C	-30 ░C	50 W	OCP, OVP, SCP	1.69 in	0.98 in	24.9 mm	42.9 mm	183.9 mm	7.24 in	Non-Dimmable	Wire Leads	90 VAC	IP66	84 %	AC DC Converter			1	3750 V	24 V	0.713 lb	323.46 g	C22.2, UL 8750
EPtronics, Inc. LD50W-72-C0700	Chassis Mount	700 mA	CE, cURus, FCC	Constant Current	305 VAC	50 °C	-30 ░C	50 W	OCP, OVP, SCP	1.69 in	0.98 in	24.9 mm	42.9 mm	194.1 mm	7.64 in	Analog, PWM	Wire Leads	90 VAC	IP66	88 %	AC DC Converter	24 V	72 V	1	3750 V
EPtronics, Inc. LD50W-40-C1250-RD	Chassis Mount	1.25 A	CE, cURus, FCC	Constant Current	305 VAC	60 °C	-40 °C	50 W	OCP, OVP, SCP	1.69 in	0.98 in	24.9 mm	42.9 mm	183.9 mm	7.24 in		Wire Leads	100 VAC	IP66	87 %	AC DC Converter	20 V	40 V	1	2500 V		0.713 lb	323.46 g	C22.2, UL 8750	10 V	0 V
EPtronics, Inc. LD50W-29-C1750-RD	Chassis Mount	1.75 A	CE, cURus, FCC	Constant Current	305 VAC	60 °C	-40 °C	50 W	OCP, OVP, SCP	1.69 in	0.98 in	24.9 mm	42.9 mm	183.9 mm	7.24 in		Wire Leads	100 VAC	IP66	87 %	AC DC Converter	14 V	29 V	1	2500 V		0.713 lb	323.46 g	C22.2, UL 8750	10 V	0 V
EPtronics, Inc. LD50W-36-C1400-RD	Chassis Mount	1.4 A	CE, cURus, FCC	Constant Current	305 VAC	60 °C	-40 °C	50 W	OCP, OVP, SCP	1.69 in	0.98 in	24.9 mm	42.9 mm	183.9 mm	7.24 in		Wire Leads	100 VAC	IP66	87 %	AC DC Converter	18 V	36 V	1	2500 V		0.713 lb	323.46 g	C22.2, UL 8750	10 V	0 V
EPtronics, Inc. LD50W-142-C0350	Chassis Mount	350 mA	CE, cURus, FCC	Constant Current	305 VAC	50 °C	-30 ░C	50 W	OCP, OVP, SCP	1.69 in	0.98 in	24.9 mm	42.9 mm	194.1 mm	7.64 in	Analog, PWM	Wire Leads	90 VAC	IP66	89 %	AC DC Converter	47 V	142 V	1	3750 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.39
		5	$ 47.91
		10	$ 46.47
		25	$ 45.08
		50	$ 43.73
		100	$ 42.42

Description

General part information

LD50W Series

1.4A 18 ~ 36V Constant Current LED Driver AC DC Converter Topology 1 Output

Documents

Technical documentation and resources
