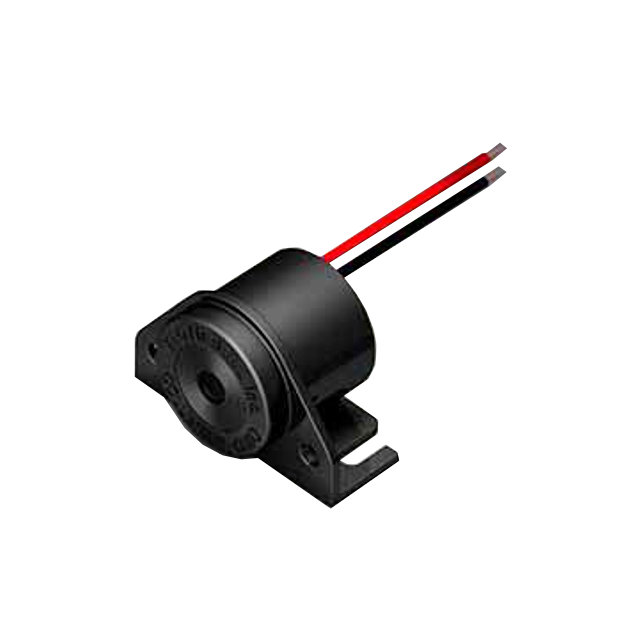

Specification	PM-100

Approval Agency	UL, UR
Current - Supply (Max)	60 mA
Current - Supply (Min)	10 mA
Driver Circuitry	Indicator, Internally Driven
Frequency	2.9 kHz
Height - Seated (Max)	1.03 in
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Input Type	DC
Mounting Type	Panel Mount, Right Angle, Flange
Operating Mode	Single Tone
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-20 °C
Port Location	Side
Size / Dimension Length	1.8 in
Size / Dimension Width	1.07 in
Sound Pressure Level (SPL)	102 dB
Technology	Piezo
Termination	Wire Leads
Voltage Range (Max)	6 V
Voltage Range (Min)	3 V
