LGJ7045TC-2R2N-D
ObsoleteTDK Corporation
FIXED IND 2.2UH 4.3A 14.6MOHM SM

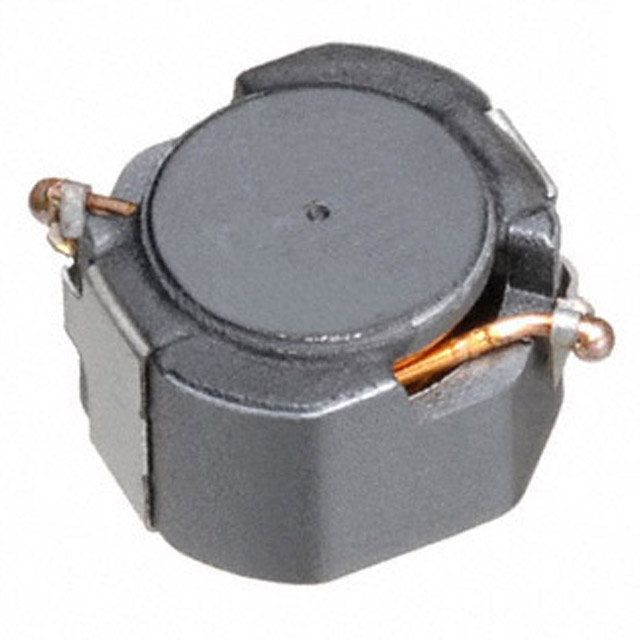

LGJ7045TC-2R2N-D
ObsoleteTDK Corporation
FIXED IND 2.2UH 4.3A 14.6MOHM SM
Description
General part information
LGJ7045TC-2R2N-D
2.2 µH Shielded Drum Core, Wirewound Inductor 4.3 A 14.6mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | LGJ7045TC-2R2N-D |
|---|---|
| Current - Saturation (Isat) | 5.5 A |
| Current Rating | 4.3 A |
| DC Resistance (DCR) | 14.6 mOhm |
| Height - Seated (Max) | 0.177 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.272 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
