MBB02070C8064FC100
ActiveVishay Dale
RES 8.06M OHM 0.6W 1% AXIAL
MBB02070C8064FC100
ActiveVishay Dale
RES 8.06M OHM 0.6W 1% AXIAL
Description
General part information
MBB02070C8064FC100

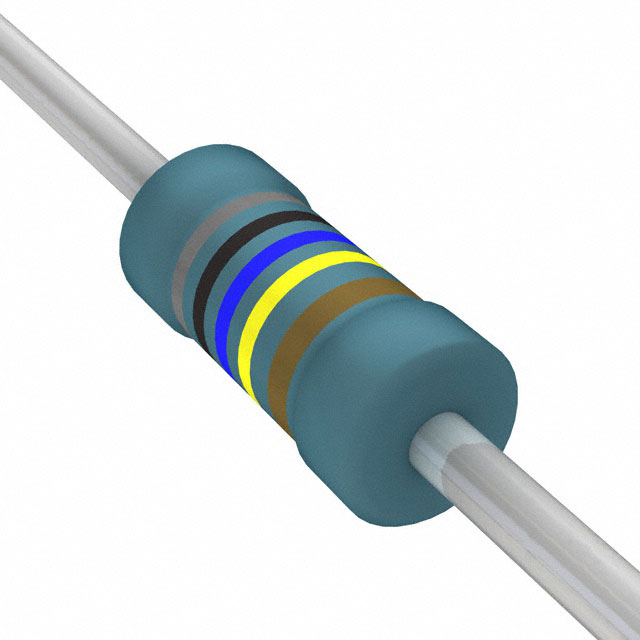

8.06 MOhms ±1% 0.6W Through Hole Resistor Axial Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MBB02070C8064FC100 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 600 mW |
| Resistance | 8.06 MOhms |
| Size / Dimension Diameter | 0.098 in |
| Size / Dimension Length | 0.256 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
