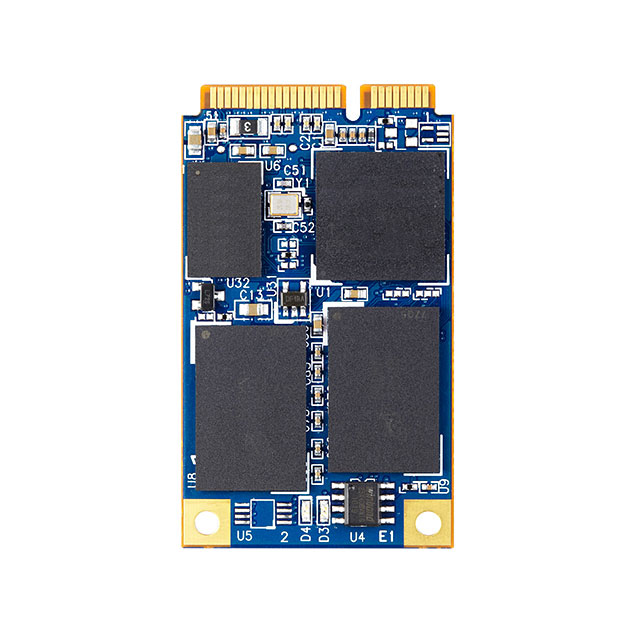

APSDM008GM1HN-HTM1W

Obsolete

Apacer Memory America

SSD 8GB MSATA MLC SATA III 3.3V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APSDM008GM1HN-HTM1W

Obsolete

Apacer Memory America

SSD 8GB MSATA MLC SATA III 3.3V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APSDM008GM1HN-HTM1W

Current - Max [Max]	265 mA
Form Factor	mSATA
Memory Size	8 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (MLC)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	2 in
Size / Dimension [y]	29.85 mm
Size / Dimension [z]	1 mm
Speed - Read	120 MB/s
Speed - Write	85 MB/s
Type	SATA III
Voltage - Supply	3.3 V

APSDM008 Series

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Form Factor	Memory Type	Speed - Read	Operating Temperature [Max]	Operating Temperature [Min]	Type	Memory Size	Current - Max [Max]	Speed - Write	Current - Max	Voltage - Supply
Apacer Memory America APSDM008GQ3AN-ATW	15.2 mm	24 mm	52.25 mm	Disk-On-Module SATA DOM	Solid State Drive (SSD) FLASH - NAND (SLC)	75 MB/s	85 °C	-40 °C	SATA III	8 GB	135 mA	41 MB/s
Apacer Memory America APSDM008GG3AN-AT	15.2 mm	24 mm	58 mm	Disk-On-Module SATA DOM	Solid State Drive (SSD) FLASH - NAND (SLC)	75 MB/s	70 °C	0 °C	SATA III	8 GB	135 mA	41 MB/s
Apacer Memory America APSDM008G42AN-PTW	1 mm	32.8 mm	45.8 mm	Disk-On-Module SATA DOM	Solid State Drive (SSD) FLASH - NAND (SLC)	85 MB/s	85 °C	-40 °C	SATA III	8 GB	170 mA	55 MB/s
Apacer Memory America APSDM008GS2AN-CTM1	7.5 mm	19.8 mm	41.4 mm	Disk-On-Module SATA DOM	Solid State Drive (SSD) FLASH - NAND (MLC)	105 MB/s	70 °C	0 °C	SATA III	8 GB		24 MB/s	155 mA
Apacer Memory America APSDM008GK3AN-ATW	6.1 mm	40 mm	17 mm		Solid State Drive (SSD) FLASH - NAND (SLC)	42 MB/s	85 °C	-40 °C	SATA III	8 GB	125 mA	37 MB/s
Apacer Memory America APSDM008GB3AN-AT	8.53 mm	29.4 mm	32.5 mm	Disk-On-Module SATA DOM	Solid State Drive (SSD) FLASH - NAND (SLC)	42 MB/s	70 °C	0 °C	SATA III	8 GB	125 mA	37 MB/s
Apacer Memory America APSDM008GK2AN-CTM1	7.5 mm	19.8 mm	41.4 mm	Disk-On-Module SATA DOM	Solid State Drive (SSD) FLASH - NAND (MLC)	105 MB/s	70 °C	0 °C	SATA III	8 GB		24 MB/s	155 mA
Apacer Memory America APSDM008GM1HN-HTM1W	1 mm	29.85 mm	2 in	mSATA	Solid State Drive (SSD) FLASH - NAND (MLC)	120 MB/s	85 °C	-40 °C	SATA III	8 GB	265 mA	85 MB/s		3.3 V
Apacer Memory America APSDM008G42AN-PTM1	1 mm	32.8 mm	45.8 mm	Disk-On-Module SATA DOM	Solid State Drive (SSD) FLASH - NAND (MLC)	105 MB/s	70 °C	0 °C	SATA III	8 GB		24 MB/s
Apacer Memory America APSDM008G12AN-PTM1	8.35 mm	30 mm	44 mm	Disk-On-Module SATA DOM	Solid State Drive (SSD) FLASH - NAND (MLC)	105 MB/s	70 °C	0 °C	SATA III	8 GB		24 MB/s

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

APSDM008 Series

Solid State Drive (SSD) FLASH - NAND (MLC) 8GB SATA III mSATA 3.3V
