862-2515
ActiveWAGO Corporation
4-CONDUCTOR CHASSIS-MOUNT TERMIN
862-2515
ActiveWAGO Corporation
4-CONDUCTOR CHASSIS-MOUNT TERMIN
Description
General part information
862-2515

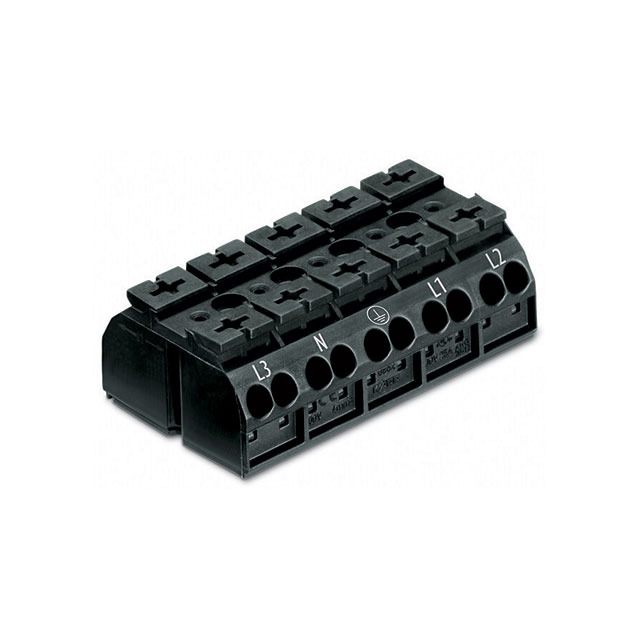

5 Position Terminal Block Push In Clamp - Wire Entry 90° to Panel Black
Technical Specifications
Parameters and characteristics for this part
| Specification | 862-2515 |
|---|---|
| Color | Black |
| Features | Push Button Actuated |
| Front Panel Wire Connection (Method) | Push In Clamp |
| Number of Levels | 1 |
| Panel Mount Type | Panel, Chassis |
| Pitch | 0.472 in |
| Positions Per Level | 5 |
| Rear Panel Wire Connection | Push In Clamp |
| Rear Panel Wire Connection (Wire Entry) Angle | 90 ° |
| Width | 2.362 in |
| Wire Entry Angle (to Panel) | 90 ° |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
