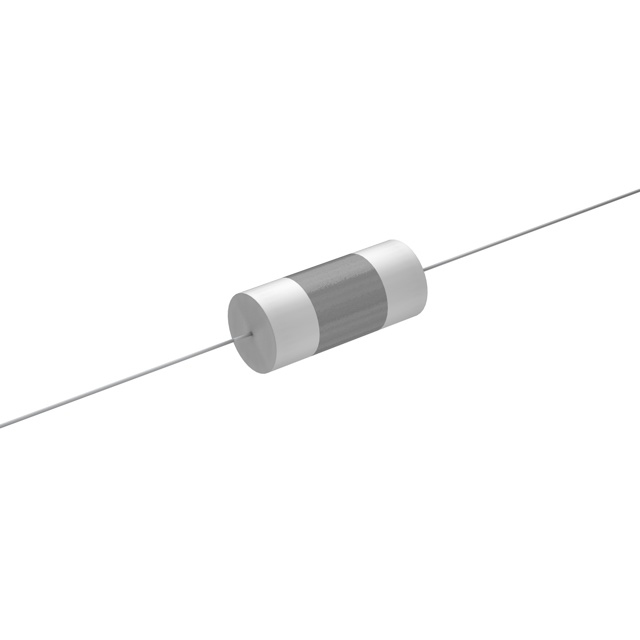

150105K400QF
ActiveCornell Dubilier Knowles
CAP FILM 1UF 10% 400VDC AXIAL
150105K400QF
ActiveCornell Dubilier Knowles
CAP FILM 1UF 10% 400VDC AXIAL
Description
General part information
150105K400QF
1 µF Film Capacitor 200V 400V Polyester, Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 150105K400QF |
|---|---|
| Applications | General Purpose |
| Capacitance | 1 µF |
| Dielectric Material | Polyester, Metallized |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.571 in |
| Size / Dimension Length | 1.299 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 200 Vpk |
| Voltage Rating - DC | 400 V |
