100023058
ActiveTelegartner Inc
CU-CN UFP8 T568B C6A D1.1-1.6
100023058
ActiveTelegartner Inc
CU-CN UFP8 T568B C6A D1.1-1.6
Description
General part information
100023058

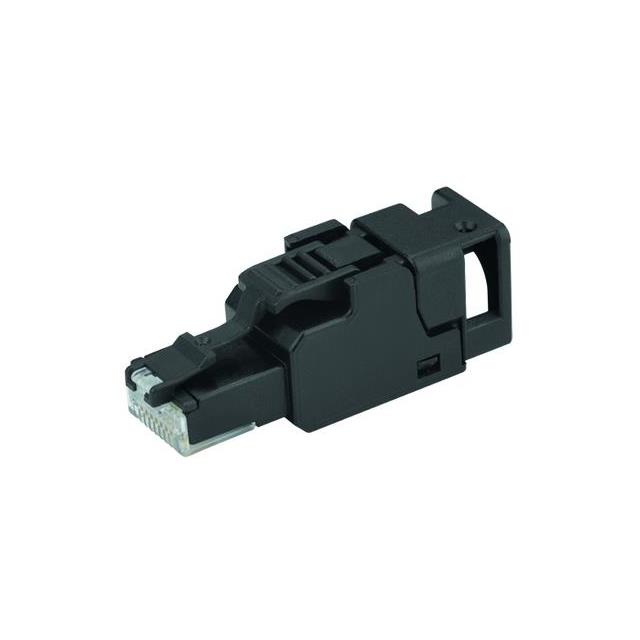

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6a IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023058 |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Color | Black |
| Connector Type | Ethernet, RJ45, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Phosphor Bronze |
| Current Rating | 1 A |
| Features | Protective Cap, Locking Hook, Strain Relief |
| Housing Material | PC, Polycarbonate |
| Ingress Protection | IP20 |
| Length | 1.65 in |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Ratings | Cat6a |
| Shield Material | Brass |
| Shielding | Shielded |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 23 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
