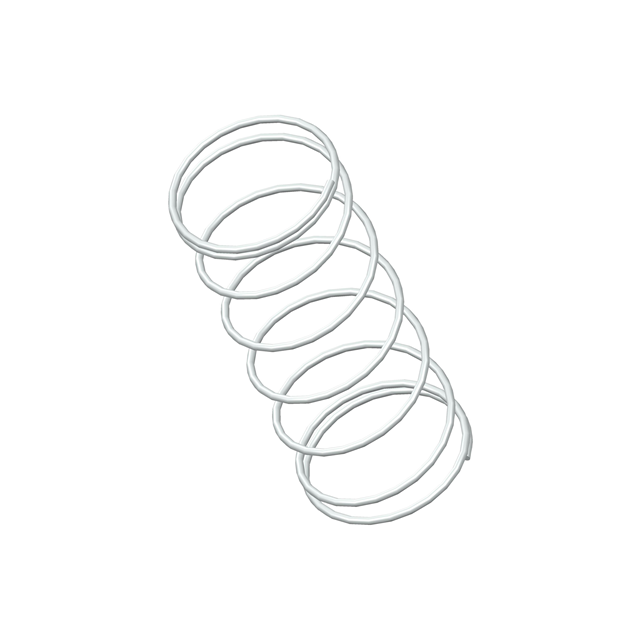

S-284CS
ActiveCentury Spring Corp
COMP O= .890,L= 2.25,W= .040
S-284CS
ActiveCentury Spring Corp
COMP O= .890,L= 2.25,W= .040
Description
General part information
S-284CS
COMP O= .890,L= 2.25,W= .040
Technical Specifications
Parameters and characteristics for this part
| Specification | S-284CS |
|---|---|
| Diameter - Inside | 0.81 in |
| Diameter - Outside | 0.89 in |
| End Style | Closed |
| Finish | None |
| Free Length | 2.25 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 0.87 lbs/in |
| Type | Compression |
| Wire Diameter | 0.04 in |
