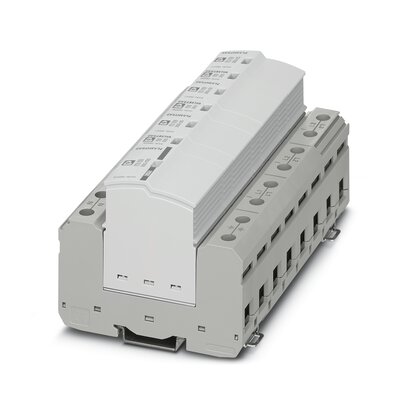

Specification	2905470

Approval Agency	CB, cUR, cURus, EAC, UR
Current - Discharge (Max)	100 kA
Current - Discharge (Nom)	25 kA
Current - Short Circuit Rating (SCCR)	50 kA
Form	Module, Base
Mounting Type	DIN Rail
Number of Poles	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Type	Type 1, Type 2
Voltage - Continuous Operating (Max) (MCOV)	528 VAC
Voltage - Protection Level (VP) (2416)	2.2 kV
Voltage - Protection Rating (VPR)	2 kV
