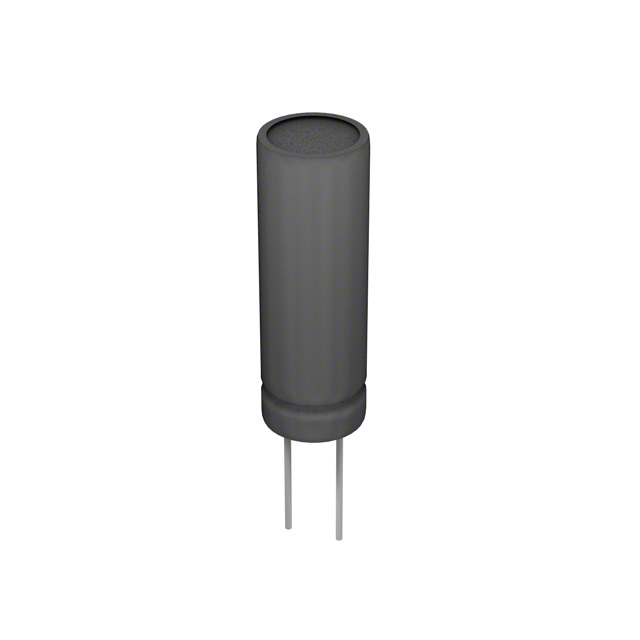

Specification	SXR122M035ST

Applications	General Purpose
Capacitance	1200 µF
ESR (Equivalent Series Resistance)	130 mOhm
Height - Seated (Max)	1.378 in
Lead Spacing	0.197 in
Lifetime	4000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	885 mA, 1.77 A
Size / Dimension Diameter	0.472 in
Tolerance	20 %
Voltage - Rated	35 V
