83026 004100

Active

Belden Inc.

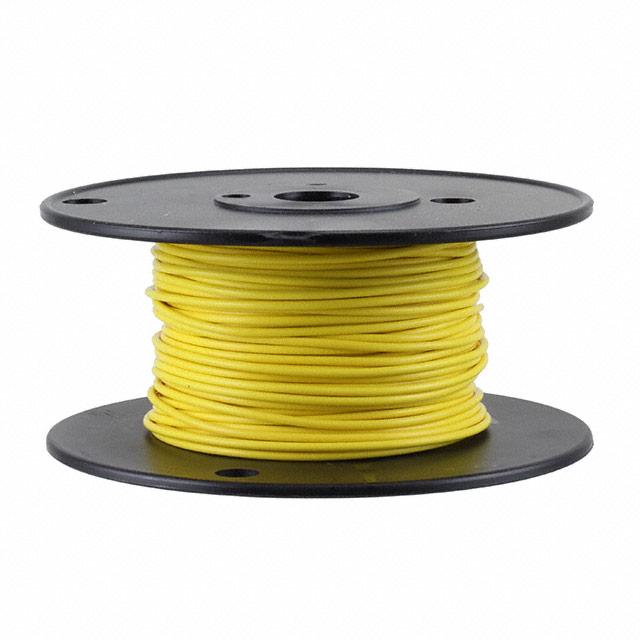

HOOK-UP STRND 22AWG YLW 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cabling Solutions for Industrial Applications

83026 004100

Active

Belden Inc.

HOOK-UP STRND 22AWG YLW 100'

Deep-Dive with AI

DocumentsDatasheet Cabling Solutions for Industrial Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	83026 004100

Cable Type	Hook-Up
Conductor Material	Copper, Silver Coated
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Features	High Temperature
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.38 mm
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Yellow
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Qualification	MIL-W-16878/5
Ratings	UL Style 1180
Voltage	300 V
Wire Gauge	22 AWG

83026 Series

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Ratings	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Features	Qualification	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand	Wire Gauge	Jacket (Insulation) Material	Cable Type	Length	Length
Belden Inc. 83026 003100	0.38 mm	0.015 in	Copper Silver Coated	UL Style 1180	300 V	200 °C	-70 °C	Orange	High Temperature	MIL-W-16878/5	30.5 m	100 ft	19 Strands	34 AWG	22 AWG	Tetrafluoroethylene (TFE)	Hook-Up
Belden Inc. 83026 0061000	0.38 mm	0.015 in	Copper Silver Coated	UL Style 1180	300 V	200 °C	-70 °C	Blue	High Temperature	MIL-W-16878/5			19 Strands	34 AWG	22 AWG	Tetrafluoroethylene (TFE)	Hook-Up	1000 ft	304.8 m
Belden Inc. 83026 010100	0.38 mm	0.015 in	Copper Silver Coated	UL Style 1180	300 V	200 °C	-70 °C	Black	High Temperature	MIL-W-16878/5	30.5 m	100 ft	19 Strands	34 AWG	22 AWG	Tetrafluoroethylene (TFE)	Hook-Up
Belden Inc. 83026 004100	0.38 mm	0.015 in	Copper Silver Coated	UL Style 1180	300 V	200 °C	-70 °C	Yellow	High Temperature	MIL-W-16878/5	30.5 m	100 ft	19 Strands	34 AWG	22 AWG	Tetrafluoroethylene (TFE)	Hook-Up
Belden Inc. 83026 0011000	0.38 mm	0.015 in	Copper Silver Coated	UL Style 1180	300 V	200 °C	-70 °C	Brown	High Temperature	MIL-W-16878/5			19 Strands	34 AWG	22 AWG	Tetrafluoroethylene (TFE)	Hook-Up	1000 ft	304.8 m
Belden Inc. 83026 0081000	0.38 mm	0.015 in	Copper Silver Coated	UL Style 1180	300 V	200 °C	-70 °C	Gray	High Temperature	MIL-W-16878/5			19 Strands	34 AWG	22 AWG	Tetrafluoroethylene (TFE)	Hook-Up	1000 ft	304.8 m
Belden Inc. 83026 008100	0.38 mm	0.015 in	Copper Silver Coated	UL Style 1180	300 V	200 °C	-70 °C	Gray	High Temperature	MIL-W-16878/5	30.5 m	100 ft	19 Strands	34 AWG	22 AWG	Tetrafluoroethylene (TFE)	Hook-Up
Belden Inc. 83026 0041000	0.38 mm	0.015 in	Copper Silver Coated	UL Style 1180	300 V	200 °C	-70 °C	Yellow	High Temperature	MIL-W-16878/5			19 Strands	34 AWG	22 AWG	Tetrafluoroethylene (TFE)	Hook-Up	1000 ft	304.8 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 187.31
		2	$ 178.19
		3	$ 173.04
		5	$ 166.73
		7	$ 162.67
		10	$ 158.47
		25	$ 148.06
		50	$ 140.56

Description

General part information

83026 Series

22 AWG Hook-Up Wire 19/34 Yellow 300V 100.0' (30.5m)

Documents

Technical documentation and resources

Datasheet

Cabling Solutions for Industrial Applications

Datasheet
