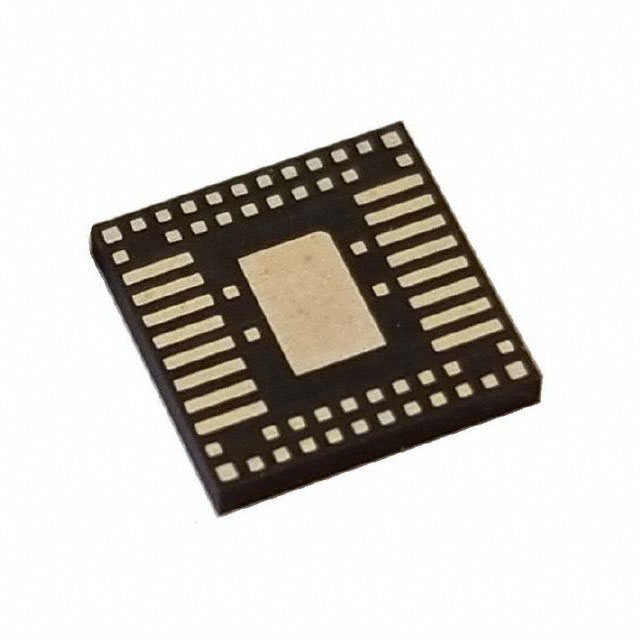

AND8240QF65

Active

AnDAPT, Inc.

IC REG 6OUT BUCK/LNR SYNC 65QF

Search across all available documentation for this part.

Active

AnDAPT, Inc.

IC REG 6OUT BUCK/LNR SYNC 65QF

Technical Specifications

Parameters and characteristics for this part

Specification	AND8240QF65

Frequency - Switching	571 kHz
Mounting Type	Surface Mount
Number of Outputs	6
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	65-PowerWFQFN
Supplier Device Package	65-QF (5x5)
Topology	Linear (LDO) (4), Step-Down (Buck) Synchronous (2)
Voltage/Current - Output 1 [custom]	6 A
Voltage/Current - Output 1 [custom]	Adj
Voltage/Current - Output 2	6 A
Voltage/Current - Output 2	Adjustable
Voltage/Current - Output 3	1 A
w/LED Driver	False
w/Sequencer	True
w/Supervisor	False

IC REG 6OUT BUCK/LNR SYNC 65QF

Part	Voltage/Current - Output 1 [custom]	Voltage/Current - Output 1 [custom]	Mounting Type	Supplier Device Package	Frequency - Switching	w/Supervisor	Voltage/Current - Output 2	Voltage/Current - Output 2	w/Sequencer	Operating Temperature [Min]	Operating Temperature [Max]	Voltage/Current - Output 3	w/LED Driver	Number of Outputs	Topology	Package / Case
AnDAPT, Inc. AND8240QF65	6 A	Adj	Surface Mount	65-QF (5x5)	571 kHz		6 A	Adjustable		-40 °C	125 ¯C	1 A		6	Linear (LDO) (4), Step-Down (Buck) Synchronous (2)	65-PowerWFQFN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.15

General part information

PMIC - Voltage Regulators - Linear Switching 6 Output Step-Down (Buck) Synchronous (2), Linear (LDO) (4) 571kHz 65-QF (5x5)
