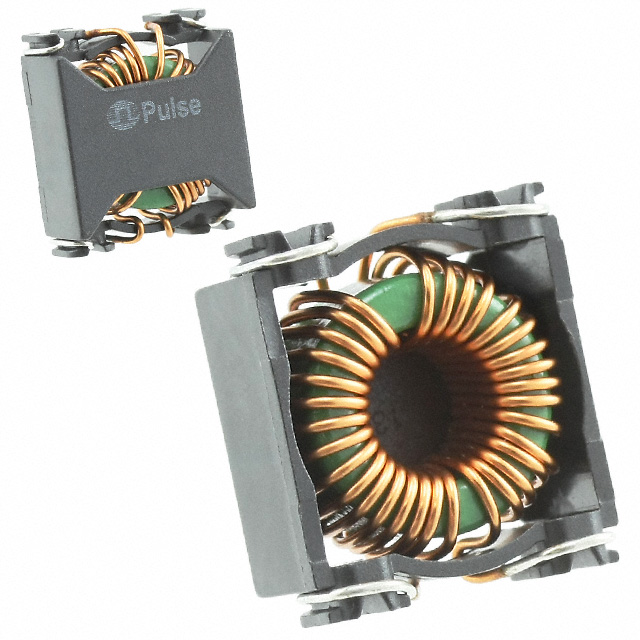

P0422
ActivePulse Electronics
CMC 4.7A 2LN SMD
P0422
ActivePulse Electronics
CMC 4.7A 2LN SMD
Description
General part information
P0422
2 Line Common Mode Choke Surface Mount 4.7A DCR 40mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | P0422 |
|---|---|
| Current Rating (Max) | 4.7 A |
| DC Resistance (DCR) (Max) | 40 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.39 in |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.77 in |
| Size / Dimension Width | 0.67 in |
