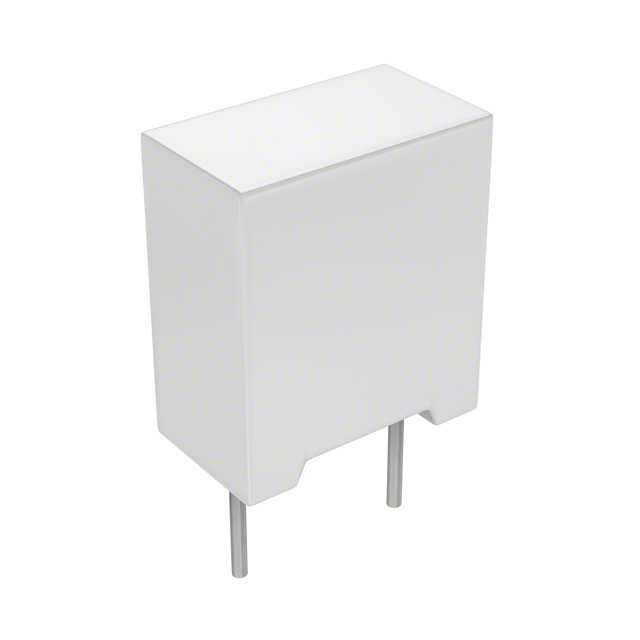

184153K630RDA-F
ActiveCornell Dubilier Knowles
CAP FILM 0.015UF 10% 630VDC RAD
184153K630RDA-F
ActiveCornell Dubilier Knowles
CAP FILM 0.015UF 10% 630VDC RAD
Description
General part information
184153K630RDA-F
0.015 µF Film Capacitor 220V 630V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 184153K630RDA-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.015 µF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.472 in |
| Lead Spacing | 0.295 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.413 in |
| Size / Dimension Width | 0.236 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 220 V |
| Voltage Rating - DC | 630 V |
