Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5CSEMA6F31A7N | 5CSEMA6 Series |
|---|---|---|
| Architecture | FPGA, MCU | FPGA, MCU |
| Connectivity | MMC/SD/SDIO, Ethernet, CANbus, EBI/EMI, I2C, SPI, UART/USART, USB OTG | MMC/SD/SDIO, Ethernet, CANbus, EBI/EMI, I2C, SPI, UART/USART, USB OTG |
| Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
| Grade | Automotive | Automotive |
| Number of I/O [custom] | 288 I/O | 145 - 288 I/O |
| Number of I/O [custom] | 181 I/O | 181 I/O |
| Operating Temperature [Max] | 125 ¯C | 85 - 125 C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Package / Case | 896-BGA | 896-BGA, 672-FBGA |
| Peripherals | WDT, POR, DMA | WDT, POR, DMA |
| Primary Attributes | 110K Logic Elements | 110K Logic Elements |
| Qualification | AEC-Q100 | AEC-Q100 |
| RAM Size | 64 KB | 64 KB |
| Speed | 700 MHz | 700 - 925 MHz |
| Supplier Device Package | 896-FBGA (31x31) | 896-FBGA (31x31), 672-UBGA (23x23) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 27 | $ 430.21 | |
5CSEMA6 Series
IC SOC CORTEX-A9 925MHZ 896FBGA
| Part | Connectivity | Primary Attributes | Operating Temperature [Min] | Operating Temperature [Max] | Core Processor | Peripherals | Supplier Device Package | Number of I/O [custom] | Number of I/O [custom] | Architecture | Package / Case | RAM Size | Speed | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Intel 5CSEMA6F31C6N | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | 110K Logic Elements | 0 °C | 85 C | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | DMA, POR, WDT | 896-FBGA (31x31) | 288 I/O | 181 I/O | FPGA, MCU | 896-BGA | 64 KB | 925 MHz | ||
Intel 5CSEMA6U23I7N | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | 110K Logic Elements | -40 °C | 100 °C | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | DMA, POR, WDT | 672-UBGA (23x23) | 145 | 181 I/O | FPGA, MCU | 672-FBGA | 64 KB | 800 MHz | ||
Intel 5CSEMA6F31I7N | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | 110K Logic Elements | -40 °C | 100 °C | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | DMA, POR, WDT | 896-FBGA (31x31) | 288 I/O | 181 I/O | FPGA, MCU | 896-BGA | 64 KB | 800 MHz | ||
Intel 5CSEMA6F31A7N | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | 110K Logic Elements | -40 °C | 125 ¯C | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | DMA, POR, WDT | 896-FBGA (31x31) | 288 I/O | 181 I/O | FPGA, MCU | 896-BGA | 64 KB | 700 MHz | AEC-Q100 | Automotive |
Intel 5CSEMA6F31C7N | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | 110K Logic Elements | 0 °C | 85 C | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | DMA, POR, WDT | 896-FBGA (31x31) | 288 I/O | 181 I/O | FPGA, MCU | 896-BGA | 64 KB | 800 MHz | ||
Intel 5CSEMA6U23C6N | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG | 110K Logic Elements | 0 °C | 85 C | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ | DMA, POR, WDT | 672-UBGA (23x23) | 145 | 181 I/O | FPGA, MCU | 672-FBGA | 64 KB | 925 MHz |
Description
General part information
5CSEMA6 Series

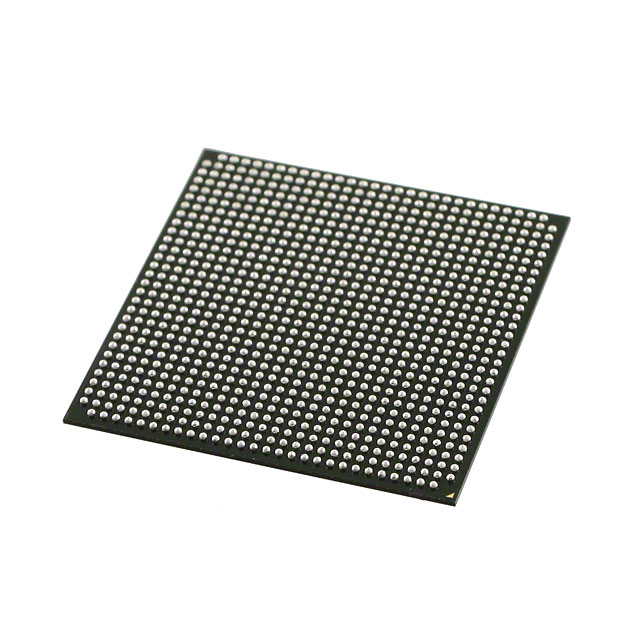

Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Cyclone® V SE FPGA - 110K Logic Elements 700MHz 896-FBGA (31x31)
