Description
General part information
EFA(01)-240X50MT0800

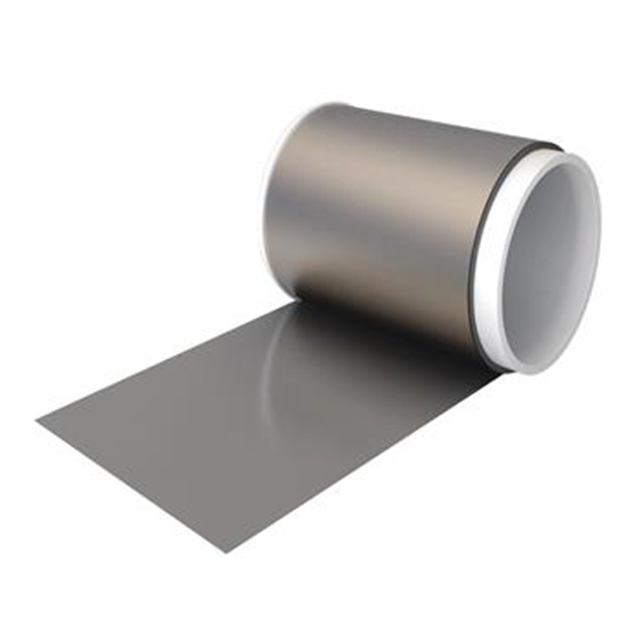

RF EMI Absorbing Sheet EFA - FLEX SUPPRESSOR® Polymer, Magnetic Powder Non-Conductive, Single Sided 9.449" (240.00mm) X 164.042' (50.00m) X 0.005" (0.13mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | EFA(01)-240X50MT0800 |
|---|---|
| Adhesive | Single Sided, Non-Conductive |
| Length | 164.042 ft |
| Material | Polymer, Magnetic Powder |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Shape | Roll |
| Shelf Life | 36 Months |
| Storage/Refrigeration Temperature (Maximum) | 104 °F |
| Thickness - Overall | 0.005 in |
| Type | Absorbing Sheet |
| Width | 9.449 in |
