1624024
ActivePhoenix Contact

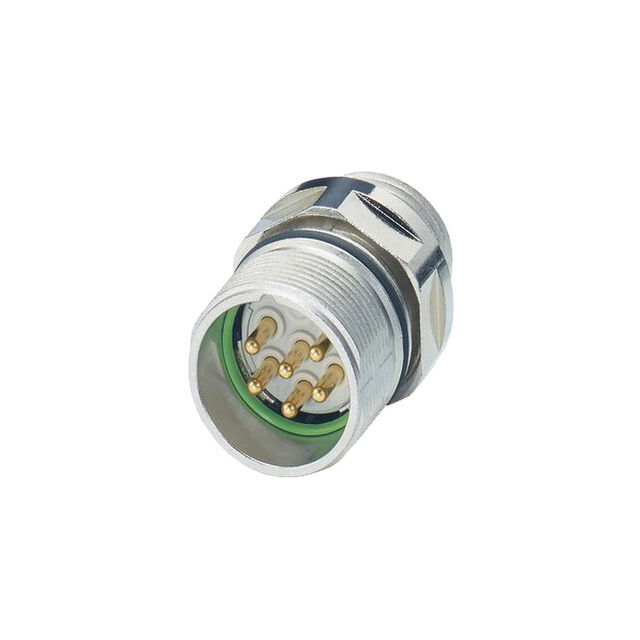

CONN RCPT HSNG MALE 9POS PNL MNT
1624024
ActivePhoenix Contact
CONN RCPT HSNG MALE 9POS PNL MNT
Description
General part information
1624024
9 (8 + 1 Power) Position Circular Connector Receptacle Housing Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1624024 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 1 mm |
| Contact Size (Power) | 2 mm |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Housing Color | Silver |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP67, IP69K |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions (Normal) | 8 |
| Number of Positions (Power) | 1 |
| Number of Positions (Total) | 9 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Shell Finish | Nickel |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M23-9 |
| Shielding | Shielded |
| Type | For Male Pins |
