SM3362
ActiveFairview Microwave
ADAPT PLUG-SEXLESS SMA
SM3362
ActiveFairview Microwave
ADAPT PLUG-SEXLESS SMA
Description
General part information
SM3362

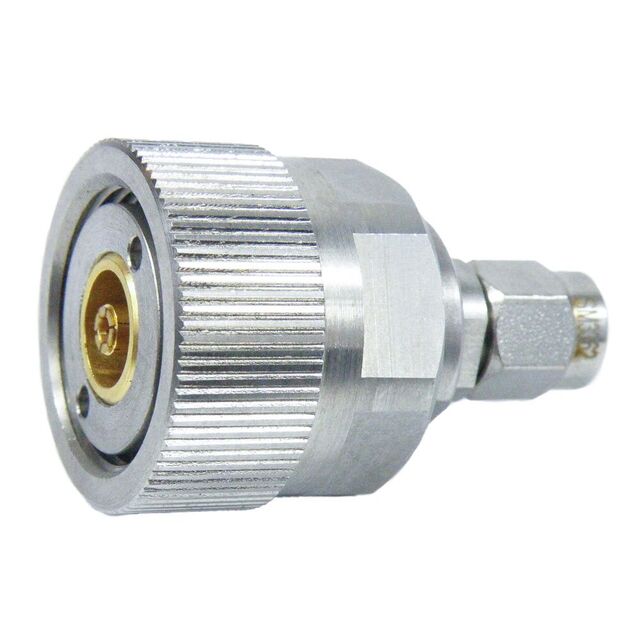

Adapter Coaxial Connector 7mm, Non-Gendered To SMA Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3362 |
|---|---|
| Adapter Series | SMA |
| Adapter Series Size | 7 mm |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Non-Gendered, Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) ID | 7 mm |
| Convert From (Adapter End) Type | Non-Gendered |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | SMA Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 18 GHz |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
