EGG.1K.307.CLL
ActiveLEMO

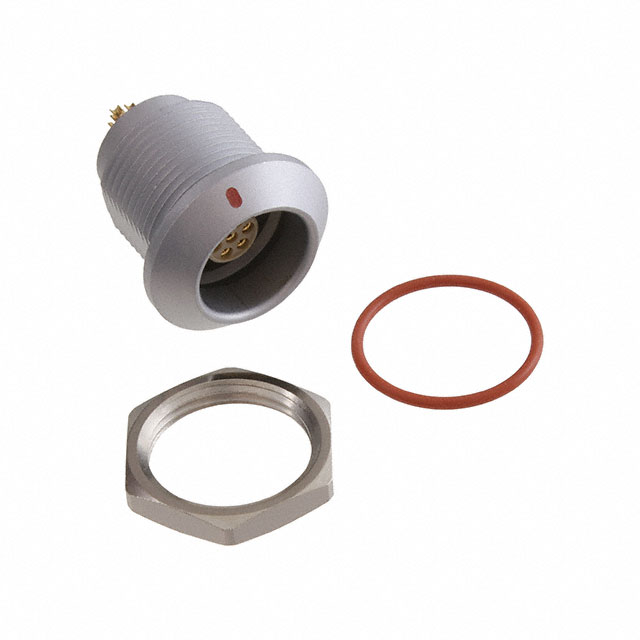

CONN RCPT FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EGG.1K.307.CLL
ActiveLEMO
CONN RCPT FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EGG.1K.307.CLL | EGG.1K Series |
|---|---|---|
| Color | Silver | Silver, Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 7 A | 1.5 - 12 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Number of Positions | 7 | 4 - 14 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 307 | 303 - 731 |
| Shielding | Shielded | Shielded |
| Termination | - | Solder, Crimp |
EGG.1K Series
Circular Push Pull Connectors STRAIGHT PLUG MALE W. CABLE COLLET
| Part | Connector Type | Material Flammability Rating | Color | Current Rating (Amps) | Ingress Protection | Orientation | Contact Material | Shell Size - Insert | Shielding | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Material | Fastening Type | Mounting Feature | Shell Finish | Insert Material | Mounting Type | Termination | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EGG.1K.303.CLL | Receptacle, Female Sockets | UL94 V-0 | Silver | 12 A | IP66/IP68 | G | Bronze | 303 | Shielded | Gold | -55 °C | 200 °C | Metal | 59 Áin | 1.5 Ám | Brass | Push-Pull | Bulkhead - Rear Side Nut | Chrome | Polyetheretherketone (PEEK) | ||||
LEMO EGG.1K.304.CLN | Receptacle, Female Sockets | UL94 V-0 | Silver | 10 A | IP66/IP68 | G | Bronze | 304 | Shielded | Gold | -55 °C | 200 °C | Metal | 59 Áin | 1.5 Ám | Brass | Push-Pull | Bulkhead - Rear Side Nut | Chrome | Polyetheretherketone (PEEK) | Panel Mount, Through Hole | Solder | 4 | |
LEMO EGG.1K.305.CLL | Receptacle, Female Sockets | UL94 V-0 | Silver | 9 A | IP66/IP68 | G | Bronze | 305 | Shielded | Gold | -55 °C | 200 °C | Metal | 59 Áin | 1.5 Ám | Brass | Push-Pull | Bulkhead - Rear Side Nut | Chrome | Polyetheretherketone (PEEK) | ||||
LEMO EGG.1K.308.KYM | Receptacle, Female Sockets | UL94 V-0 | Black | 5 A | IP66/IP68 | G | Bronze | 308 | Shielded | Gold | -55 °C | 200 °C | Metal | 59 Áin | 1.5 Ám | Brass | Push-Pull | Bulkhead - Rear Side Nut | Polyetheretherketone (PEEK) | Crimp | 8 | |||
LEMO EGG.1K.307.CYM | Receptacle, Female Sockets | UL94 V-0 | Silver | 7 A | IP66/IP68 | G | Bronze | 307 | Shielded | Gold | -55 °C | 200 °C | Metal | 59 Áin | 1.5 Ám | Brass | Push-Pull | Bulkhead - Rear Side Nut | Chrome | Polyetheretherketone (PEEK) | Crimp | 7 | ||
LEMO EGG.1K.305.CYM | Receptacle, Female Sockets | UL94 V-0 | Silver | 9 A | IP66/IP68 | G | Bronze | 305 | Shielded | Gold | -55 °C | 200 °C | Metal | 59 Áin | 1.5 Ám | Brass | Push-Pull | Bulkhead - Rear Side Nut | Chrome | Polyetheretherketone (PEEK) | Crimp | |||
LEMO EGG.1K.316.CLL | Receptacle, Female Sockets | UL94 V-0 | Silver | 1.5 A | IP66/IP68 | G | Bronze | 316 | Shielded | Gold | -55 °C | 200 °C | Metal | 59 Áin | 1.5 Ám | Brass | Push-Pull | Bulkhead - Rear Side Nut | Chrome | Polyetheretherketone (PEEK) | 16 | |||
LEMO EGG.1K.304.CYM | Receptacle, Female Sockets | UL94 V-0 | Silver | 10 A | IP66/IP68 | G | Bronze | 304 | Shielded | Gold | -55 °C | 200 °C | Metal | 59 Áin | 1.5 Ám | Brass | Push-Pull | Bulkhead - Rear Side Nut | Chrome | Polyetheretherketone (PEEK) | Crimp | 4 | ||
LEMO EGG.1K.314.CLL | Receptacle, Female Sockets | UL94 V-0 | Silver | 2 A | IP66/IP68 | G | Bronze | 314 | Shielded | Gold | -55 °C | 200 °C | Metal | 59 Áin | 1.5 Ám | Brass | Push-Pull | Bulkhead - Rear Side Nut | Chrome | Polyetheretherketone (PEEK) | 14 | |||
LEMO EGG.1K.307.CLL | Receptacle, Female Sockets | UL94 V-0 | Silver | 7 A | IP66/IP68 | G | Bronze | 307 | Shielded | Gold | -55 °C | 200 °C | Metal | 59 Áin | 1.5 Ám | Brass | Push-Pull | Bulkhead - Rear Side Nut | Chrome | Polyetheretherketone (PEEK) | 7 |
