A3DDH-2606G
ActiveTE Connectivity AMP Connectors
IDC CABLE - AKR26H/AE26G/AKR26H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A3DDH-2606G
ActiveTE Connectivity AMP Connectors
IDC CABLE - AKR26H/AE26G/AKR26H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A3DDH-2606G | A3DDH Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | Socket to Socket | Socket to Socket |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Features | Polarizing Key, Strain Relief | Polarizing Key, Strain Relief |
| Length | 152.4 mm | 152.4 mm |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 1.5 - 3 ft |
| Length | - | 457.2 - 914.4 mm |
| Number of Positions | 26 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.26 | |
| 10 | $ 7.67 | |||
| 25 | $ 7.12 | |||
| 50 | $ 6.73 | |||
| 100 | $ 6.36 | |||
| 250 | $ 5.90 | |||
| 500 | $ 5.58 | |||
| 1000 | $ 5.28 | |||
A3DDH Series
IDC CABLE - AKR64H/AE64M/AKR64H
| Part | Number of Rows | Features | Pitch - Cable | Pitch - Cable | Pitch - Connector | Pitch - Connector | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Length | Length | Length | Color | Connector Type | Contact Finish | Cable Termination | Shielding | Length [x] | Length [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A3DDH-6406M | 2 | Polarizing Key, Strain Relief | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 64 | 15 µin | 0.38 µm | 152.4 mm | 6 " | 0.5 ' | Multiple, Ribbon | Socket to Socket | Gold | IDC | Unshielded | |||
TE Connectivity AMP Connectors A3DDH-6006M | 2 | Polarizing Key, Strain Relief | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 60 | 15 µin | 0.38 µm | 152.4 mm | 6 " | 0.5 ' | Multiple, Ribbon | Socket to Socket | Gold | IDC | Unshielded | |||
TE Connectivity AMP Connectors A3DDH-2406M | 2 | Polarizing Key, Strain Relief | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 24 | 15 µin | 0.38 µm | 152.4 mm | 6 " | 0.5 ' | Multiple, Ribbon | Socket to Socket | Gold | IDC | Unshielded | |||
TE Connectivity AMP Connectors A3DDH-2606G | 2 | Polarizing Key, Strain Relief | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 26 | 15 µin | 0.38 µm | 152.4 mm | 6 " | 0.5 ' | Socket to Socket | Gold | IDC | Unshielded | ||||
TE Connectivity AMP Connectors A3DDH-6036M | 2 | Polarizing Key, Strain Relief | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 60 | 15 µin | 0.38 µm | Multiple, Ribbon | Socket to Socket | Gold | IDC | Unshielded | 3 ft | 914.4 mm | ||||
TE Connectivity AMP Connectors A3DDH-1006G | 2 | Polarizing Key, Strain Relief | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 10 | 15 µin | 0.38 µm | 152.4 mm | 6 " | 0.5 ' | Socket to Socket | Gold | IDC | Unshielded | ||||
TE Connectivity AMP Connectors A3DDH-4436G | 2 | Polarizing Key, Strain Relief | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 44 | 15 µin | 0.38 µm | Socket to Socket | Gold | IDC | Unshielded | 3 ft | 914.4 mm | |||||
TE Connectivity AMP Connectors A3DDH-4036G | 2 | Polarizing Key, Strain Relief | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 40 | 15 µin | 0.38 µm | Socket to Socket | Gold | IDC | Unshielded | 3 ft | 914.4 mm | |||||
TE Connectivity AMP Connectors A3DDH-6018M | 2 | Polarizing Key, Strain Relief | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 60 | 15 µin | 0.38 µm | Multiple, Ribbon | Socket to Socket | Gold | IDC | Unshielded | 1.5 ft | 457.2 mm | ||||
TE Connectivity AMP Connectors A3DDH-4006M | 2 | Polarizing Key, Strain Relief | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 40 | 15 µin | 0.38 µm | 152.4 mm | 6 " | 0.5 ' | Multiple, Ribbon | Socket to Socket | Gold | IDC | Unshielded |
Description
General part information
A3DDH Series

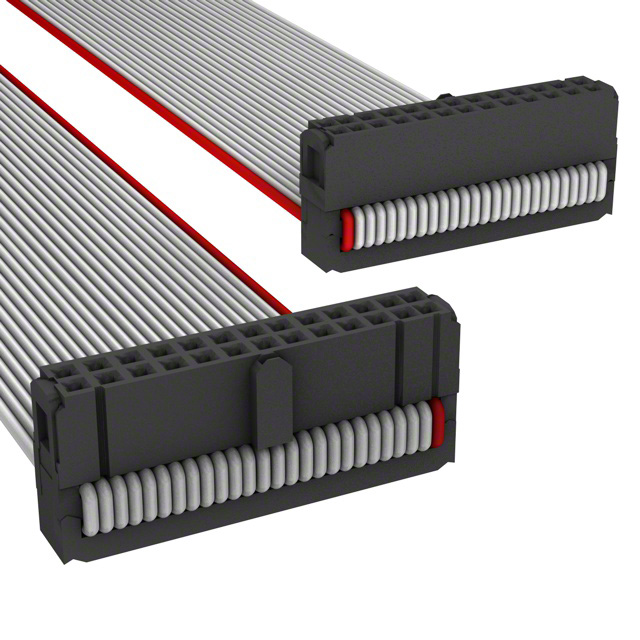

26 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
