FP301-3-50'-RED-SPOOL

Active

3M (TC)

HEATSHRINK FP301 3-50' RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

FP301-3-50'-RED-SPOOL

Active

3M (TC)

HEATSHRINK FP301 3-50' RED

Deep-Dive with AI

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FP301-3-50'-RED-SPOOL

Color	Red
Features	Flame Retardant, Solvent Resistant
Inner Diameter - Recovered [diameter]	38.1 mm
Inner Diameter - Recovered [diameter]	1.5 in
Inner Diameter - Supplied [diameter]	3 in
Inner Diameter - Supplied [diameter]	76.2 mm
Length	15.2 m
Length	50 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	1.27 mm
Recovered Wall Thickness	0.05 in
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	100 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Flexible

FP-301VW Series

...

Part	Shrink Temperature	Type	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio	Operating Temperature [Max]	Operating Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life	Color	Length [x]	Length [x]	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Shelf Life Start	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length	Length	Length	Length	Length	Diameter [diameter]	Values [custom]	Values [Min]	Values [Max]	Values [custom]	Inner Diameter - Recovered	Inner Diameter - Recovered
3M (TC) FP301-1/2-48"-GREEN-HDR-12 PCS	100 °C	Tubing Flexible	Polyolefin (PO)	0.25 in	6.35 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Flame Retardant Header Label Solvent Resistant	12.7 mm	0.5 in	120 Months	Green	1.22 m	4 ft	0.025 "	0.64 mm	Date of Manufacture
3M (TC) FP301-3/32-48"-CLEAR-HDR-25 PCS	100 °C	Tubing Flexible	Polyolefin (PO)	0.046 in	1.17 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Header Label Solvent Resistant	0.093 in		120 Months	Clear	1.22 m	4 ft			Date of Manufacture	2.36 mm	0.02 in	0.51 mm
3M (TC) FP-301 2" WT 100'	100 °C	Tubing Flexible	Polyolefin (PO)	1 in	25.4 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Flame Retardant Solvent Resistant	50.8 mm	2 in	120 Months	White	30.5 m 101.6 mm	0.333 ft 100 ft			Date of Manufacture		0.045 in	1.14 mm	4 "	0.125 ' 0.167 ' 5 ' 25 ft 50 ft	1.52 m 7.6 m 15.2 m 38.1 mm 50.8 mm 152.4 mm	1.5 " 2 " 6 "	0.5 '	Enter Number of Feet in Order Quantity
3M (TC) FP301-3-50'-RED-SPOOL	100 °C	Tubing Flexible	Polyolefin (PO)	1.5 in	38.1 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Flame Retardant Solvent Resistant	76.2 mm	3 in	120 Months	Red					Date of Manufacture		0.05 in	1.27 mm		50 ft	15.2 m
3M (TC) FP-301-3/32-BLACK-6"-PACK						2 to 1									Black															0.09375 in	152.4 mm	10 pc	36 pc	6 in
3M (TC) FP-301 2" BU 100'	100 °C	Tubing Flexible	Polyolefin (PO)	1 in	25.4 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Flame Retardant Solvent Resistant	50.8 mm	2 in	120 Months	Blue	101.6 mm	0.333 ft			Date of Manufacture		0.045 in	1.14 mm	4 "	0.062 ' 0.083 ft 0.25 ft 25 ft 50 ft	7.6 m 15.2 m 19.05 mm 25.4 mm 76.2 mm 152.4 mm	0.75 " 1 in 3 " 6 "	0.5 '
3M (TC) FP301-2-50'-CLEAR-SPOOL	100 °C	Tubing Flexible	Polyolefin (PO)	1 in	25.4 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Solvent Resistant	50.8 mm	2 in	120 Months	Clear					Date of Manufacture		0.045 in	1.14 mm		50 ft	15.2 m
3M (TC) FP-301-VW-1/16-BLACK	100 °C	Tubing Flexible	Polyolefin (PO)	0.031 in	0.79 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Flame Retardant	1.6 mm	0.063 in	120 Months	Black					Date of Manufacture		0.017 in	0.43 mm			152.4 mm	6 "	0.5 '
3M (TC) FP-301-1.5-YELLOW-4'-BULK	100 °C	Tubing Flexible	Polyolefin (PO)	0.75 "	19.05 mm	2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C	Flame Retardant Solvent Resistant	38.1 mm	1.5 in	120 Months	Yellow	1.22 m	4 ft			Date of Manufacture		0.04 in	1.02 mm
3M (TC) FP301-3/16-100'-GREEN-SPOOL	100 °C	Tubing Flexible	Polyolefin (PO)			2 to 1	135 °C	-55 °C	27 °C 80 °F	10 °C		4.75 mm	0.187 in	120 Months	Green					Date of Manufacture		0.02 in	0.51 mm		10 ft 25 ft 50 ft	3.05 m 7.6 m 15.2 m									2.36 mm	0.093 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2700	$ 4.48

Description

General part information

FP-301VW Series

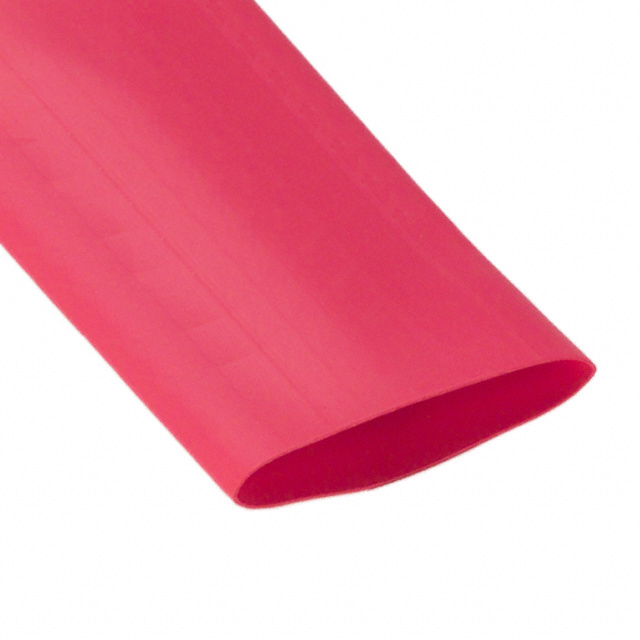

Heat Shrink Tubing, Flexible 3.000" (76.20mm) 2 to 1 Red 50.0' (15.2m)

Documents

Technical documentation and resources

Heat Shrink Tubing and Devices Catalog

Datasheet
