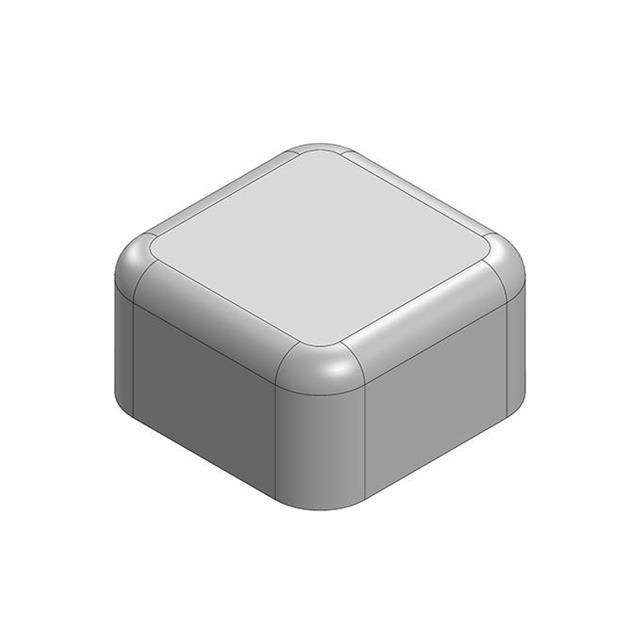

MS093-10S-NS

Active

Masach Tech Ltd.

RF SHIELD 0.366"X0.366" SOLDER

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.366"X0.366" SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.381X0.381" SNAP FIT

Part	Type	Length - Overall	Length - Overall	Width - Overall [x]	Width - Overall [x]	Ventilation	Height - Overall [z]	Height - Overall	Mounting Type	Height - Overall [z]	Length - Overall [x]	Length - Overall [x]
Masach Tech Ltd. MS093-10C-NS	Cover	9.7 mm	0.381 "	0.381 "	9.7 mm	Non-Vented	0.118 in	3 mm	Snap Fit
Masach Tech Ltd. MS093-10S-NS	Shield, 1-Piece			0.366 in	9.3 mm	Non-Vented	0.197 in		Solder	5 mm	9.3 mm	0.366 in
Masach Tech Ltd. MS093-10C	Cover	9.7 mm	0.381 "	0.381 "	9.7 mm	Non-Vented	0.118 in	3 mm	Snap Fit
Masach Tech Ltd. MS093-10F-NS	Frame			0.366 in	9.3 mm		0.197 in		Solder	5 mm	9.3 mm	0.366 in
Masach Tech Ltd. MS093-10F	Frame			0.366 in	9.3 mm		0.197 in		Solder	5 mm	9.3 mm	0.366 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Shield, 1-Piece 0.366" (9.30mm) X 0.366" (9.30mm) Non-Vented Solder
