RR3B-UAC110V
ActiveIDEC Corporation

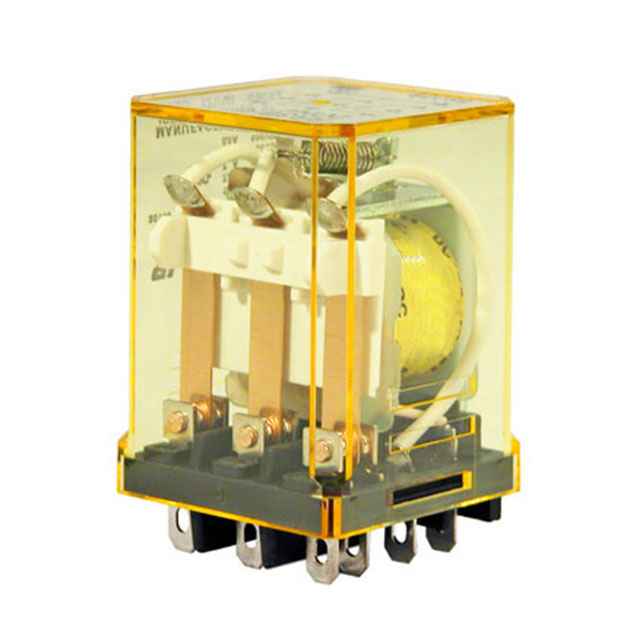

RELAY GEN PURPOSE 3PDT 10A 110V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RR3B-UAC110V
ActiveIDEC Corporation
RELAY GEN PURPOSE 3PDT 10A 110V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RR3B-UAC110V | RR3B-U Series |
|---|---|---|
| Approval Agency | CSA, TUV, cURus, CE | CSA, TUV, cURus, CE |
| Coil Current | 23 mA | 13 - 420 mA |
| Coil Resistance | 1.68 kOhms | 1.6 - 400 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 110 VAC/DC | 6 - 200 VAC |
| Contact Form | 3PDT (3 Form C) | 3PDT (3 Form C) |
| Contact Material | Silver (Ag) | Silver (Ag) |
| Contact Rating (Current) | 10 A | 10 A |
| Features | - | Lighted Indicator, Test Button |
| Load - Max Switching | 300 W, 2400 VA | 300 - 2400 W |
| Mounting Type | Socketable | Socketable, Chassis Mount |
| Must Operate Voltage | 88 VAC/DC | 4.8 - 160 VAC |
| Must Release Voltage | 33 VAC | 0.6 - 60 VAC |
| Operate Time | 25 ms | 25 ms |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 25 ms | 25 ms |
| Switching Voltage | 30 VDC, 240 VAC | 30 - 240 VDC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) | Plug In, Quick Connect - 0.187" (4.7mm), Quick Connect - 0.187" (4.7mm) |
RR3B-U Series
POWER RELAY, 3PDT, 24 VAC, 10 A, RR SERIES, SOCKET, NON LATCHING
| Part | Approval Agency | Must Operate Voltage | Relay Type | Load - Max Switching | Coil Resistance | Must Release Voltage | Switching Voltage | Coil Type | Coil Voltage | Release Time | Mounting Type | Contact Form | Operate Time | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Material | Coil Current | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDEC Corporation RR3B-ULAC24V | CE, CSA, cURus, TUV | 19.2 VAC | General Purpose | 300 W, 2400 VA | 79 Ohms | 7.2 VAC | 30 VDC, 240 VAC | Non Latching | 24 VAC | 25 ms | Socketable | 3PDT (3 Form C) | 25 ms | Plug In, Quick Connect - 0.187" (4.7mm) | -25 °C | 40 °C | Lighted Indicator | Silver (Ag) | 105 mA | 10 A |
IDEC Corporation RR3B-UAC200V | CE, CSA, cURus, TUV | 160 VAC | General Purpose | 300 W, 2400 VA | 16 kOhms | 60 VAC/DC | 30 VDC, 240 VAC | Non Latching | 200 VAC | 25 ms | Socketable | 3PDT (3 Form C) | 25 ms | Plug In, Quick Connect - 0.187" (4.7mm) | -25 °C | 40 °C | Silver (Ag) | 10 A | ||
IDEC Corporation RR3B-ULSDC12V | CE, CSA, cURus, TUV | 9.6 VDC | General Purpose | 300 W, 2400 VA | 100 Ohms | 1.2 VDC | 30 VDC, 240 VAC | Non Latching | 12 VDC | 25 ms | Chassis Mount | 3PDT (3 Form C) | 25 ms | Quick Connect - 0.187" (4.7mm) | -25 °C | 40 °C | Lighted Indicator | Silver (Ag) | 120 mA | 10 A |
IDEC Corporation RR3B-USAC24V | CE, CSA, cURus, TUV | 19.2 VAC | General Purpose | 300 W, 2400 VA | 79 Ohms | 7.2 VAC | 30 VDC, 240 VAC | Non Latching | 24 VAC | 25 ms | Chassis Mount | 3PDT (3 Form C) | 25 ms | Quick Connect - 0.187" (4.7mm) | -25 °C | 40 °C | Silver (Ag) | 105 mA | 10 A | |
IDEC Corporation RR3B-ULDC24V | CE, CSA, cURus, TUV | 19.2 VDC | General Purpose | 300 W, 2400 VA | 400 Ohms | 2.4 VDC | 30 VDC, 240 VAC | Non Latching | 24 VDC | 25 ms | Socketable | 3PDT (3 Form C) | 25 ms | Plug In, Quick Connect - 0.187" (4.7mm) | -25 °C | 40 °C | Lighted Indicator | Silver (Ag) | 60 mA | 10 A |
IDEC Corporation RR3B-ULDC6V | CE, CSA, cURus, TUV | 4.8 VDC | General Purpose | 300 W, 2400 VA | 25 Ohms | 0.6 VDC | 30 VDC, 240 VAC | Non Latching | 25 ms | Socketable | 3PDT (3 Form C) | 25 ms | Plug In, Quick Connect - 0.187" (4.7mm) | -25 °C | 40 °C | Lighted Indicator | Silver (Ag) | 240 mA | 10 A | |
IDEC Corporation RR3B-UAC6V | CE, CSA, cURus, TUV | 4.8 VAC/DC | General Purpose | 300 W, 2400 VA | 4.9 Ohms | 1.8 VAC | 30 VDC, 240 VAC | Non Latching | 6 VAC | 25 ms | Socketable | 3PDT (3 Form C) | 25 ms | Plug In, Quick Connect - 0.187" (4.7mm) | -25 °C | 40 °C | Silver (Ag) | 420 mA | 10 A | |
IDEC Corporation RR3B-USDC110V | CE, CSA, cURus, TUV | 88 VDC | General Purpose | 300 W, 2400 VA | 8.46 kOhms | 11 VDC | 30 VDC, 240 VAC | Non Latching | 110 VDC | 25 ms | Chassis Mount | 3PDT (3 Form C) | 25 ms | Quick Connect - 0.187" (4.7mm) | -25 °C | 40 °C | Silver (Ag) | 13 mA | 10 A | |
IDEC Corporation RR3B-UDC48V | CE, CSA, cURus, TUV | 38.4 VDC | General Purpose | 300 W, 2400 VA | 1.6 kOhms | 4.8 VDC | 30 VDC, 240 VAC | Non Latching | 48 VDC | 25 ms | Socketable | 3PDT (3 Form C) | 25 ms | Plug In, Quick Connect - 0.187" (4.7mm) | -25 °C | 40 °C | Silver (Ag) | 30 mA | 10 A | |
IDEC Corporation RR3B-ULAC12V | CE, CSA, cURus, TUV | 9.6 VAC/DC | General Purpose | 300 W, 2400 VA | 18 Ohms | 3.6 VAC | 30 VDC, 240 VAC | Non Latching | 12 VAC/DC | 25 ms | Socketable | 3PDT (3 Form C) | 25 ms | Plug In, Quick Connect - 0.187" (4.7mm) | -25 °C | 40 °C | Lighted Indicator | Silver (Ag) | 210 mA | 10 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.32 | |
| 10 | $ 14.26 | |||
| 25 | $ 13.51 | |||
| 50 | $ 12.97 | |||
| 100 | $ 12.45 | |||
| 250 | $ 11.80 | |||
| 500 | $ 11.33 | |||
Description
General part information
RR3B-U Series
General Purpose Relay 3PDT (3 Form C) 110VAC Coil Socketable
