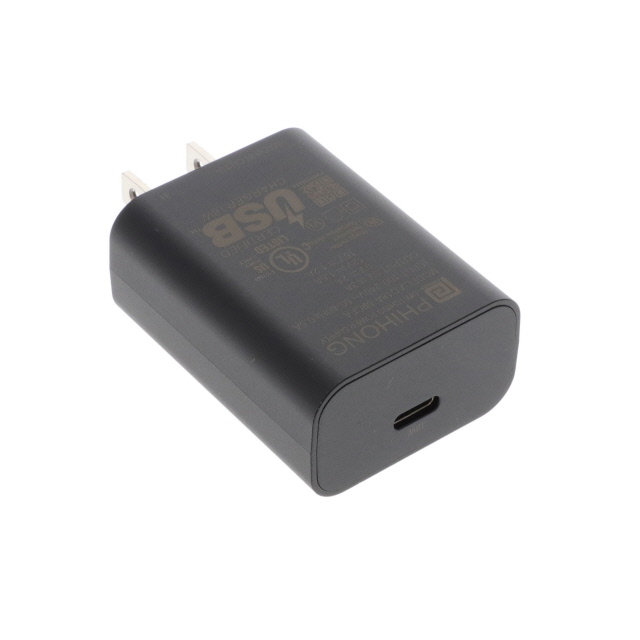

AQ18A-59CFA-H

Active

Phihong USA

AC/DC WALL ADP 5V/9V/12V/15V 18W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL ADP 5V/9V/12V/15V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	AQ18A-59CFA-H

Applications	ITE (Commercial)
Approval Agency	cULus, CE
Current - Output (Max) [Max]	1.2 A, 3 A, 2 A, 1.5 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	USB C Receptacle
Power (Watts)	18 W
Region Utilized	North America
Size / Dimension [x]	40 mm
Size / Dimension [x]	1.57 in
Size / Dimension [y]	23.3 mm
Size / Dimension [y]	0.92 "
Size / Dimension [z]	2.05 in
Size / Dimension [z]	52 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	9 V, 15 VDC, 12 V, 5 V

Part	Current - Output (Max) [Max]	Applications	Power (Watts)	Input Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Region Utilized	Form	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Output Connector	No Load Power Consumption [Max]	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency
Phihong USA AQ18A-59CFA-H	1.2 A 1.5 A 2 A 3 A	ITE (Commercial)	18 W	Fixed Blade	2.05 in	23.3 mm	40 mm	52 mm	0.92 "	1.57 in	North America	Wall Mount (Class II)	NEMA 1-15P	40 °C	0 °C	CoC Tier 2 Level VI	USB C Receptacle	75 mW	5 V 9 V 12 V 15 VDC	90 VAC	264 VAC	CE cULus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V, 9V, 12V, 15V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
