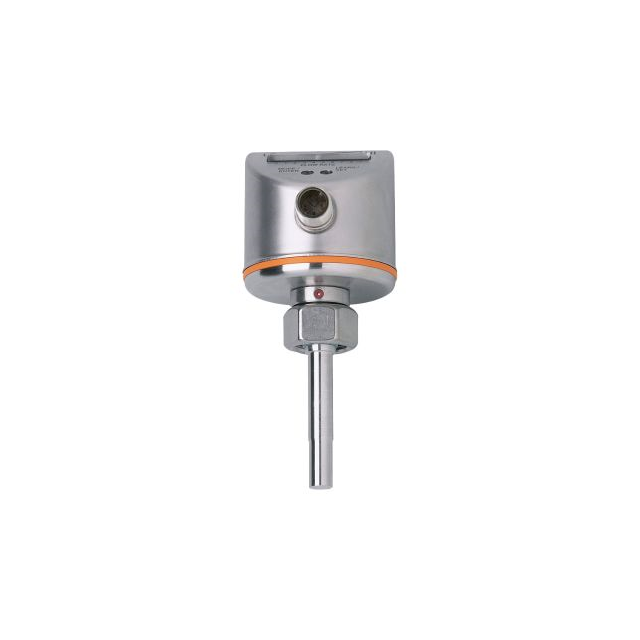

SI5000
Activeifm efector, inc.
FLOW MONITOR; PNP; SWITCHING SIG
SI5000
Activeifm efector, inc.
FLOW MONITOR; PNP; SWITCHING SIG
Description
General part information
SI5000
FLOW MONITOR; PNP; SWITCHING SIG
Technical Specifications
Parameters and characteristics for this part
| Specification | SI5000 |
|---|---|
| Flow Sensor Type | Liquid, Gas |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Port Code | M18 |
| Port Feature | x, 1.5 |
| Sensing Range (Range 1) Maximum | 3 m/s |
| Sensing Range (Range 1) Minimum | 0.03 m/s |
| Sensing Range (Range 2) Maximum | 3000 cm/s |
| Sensing Range (Range 2) Minimum | 2 m/s |
| Switch Function | SPDT |
| Voltage - Input (Maximum) | 36 V |
| Voltage - Input (Minimum) | 19 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
