SSL-LX25783GD

Active

Lumex Opto/Components Inc.

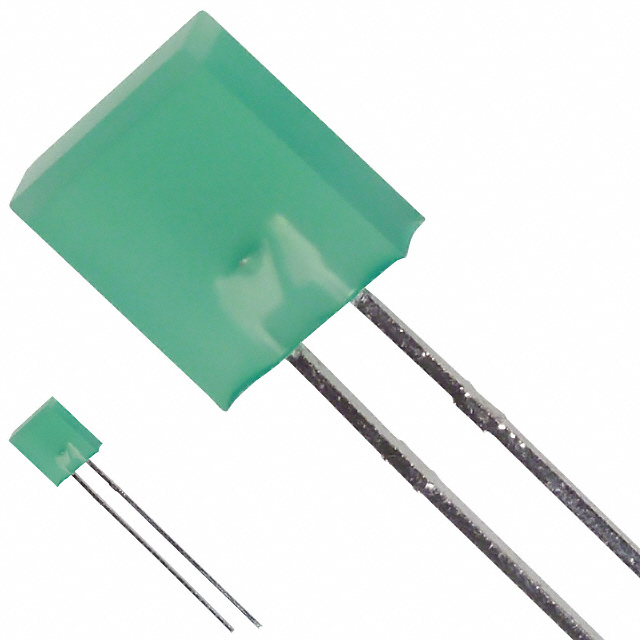

LED GRN DIFF RECT 2.3MMX7MM T/H

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LX25783GD

Active

Lumex Opto/Components Inc.

LED GRN DIFF RECT 2.3MMX7MM T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL-LX25783GD	SSL-LX25783 Series

Color	Green	Red, Amber, Green, Yellow
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	8 mm	8 mm
Lens Color	Green	Red, White, Green, Yellow, Amber
Lens Size [x]	7 mm	7 mm
Lens Size [y]	2.3 mm	2.3 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	9 mcd	4 - 160 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Supplier Device Package	Rectangular 2.3mmx7mm	Rectangular 2.3mmx7mm
Viewing Angle	110 °	80 - 110 °
Voltage - Forward (Vf) (Typ)	2 V	1.7 - 2.1 V
Wavelength - Peak	565 nm	565 - 660 nm

SSL-LX25783 Series

LED RED DIFF RECT 2.3MMX7MM T/H

Part	Package / Case	Lens Size [x]	Lens Size [y]	Lens Transparency	Viewing Angle	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Lens Color	Current - Test	Height (Max) [Max] [z]	Color	Configuration	Lens Style	Wavelength - Peak	Supplier Device Package	Mounting Type
Lumex Opto/Components Inc. SSL-LX25783ID	Radial	7 mm	2.3 mm	Diffused	80 °	2 V	9 mcd	Red	20 mA	8 mm	Red	Standard	Rectangle with Flat Top	635 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783SRW-TD	Radial	7 mm	2.3 mm	Diffused	80 °	1.7 V	37 mcd	White	20 mA	8 mm	Red	Standard	Rectangle with Flat Top	660 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783SRD	Radial	7 mm	2.3 mm	Diffused	110 °	1.8 V	50 mcd	Red	20 mA	8 mm	Red	Standard	Rectangle with Flat Top	660 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783AW-TD	Radial	7 mm	2.3 mm	Diffused	110 °	2 V	10 mcd	White	20 mA	8 mm	Amber	Standard	Rectangle with Flat Top	605 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783GD	Radial	7 mm	2.3 mm	Diffused	110 °	2 V	9 mcd	Green	20 mA	8 mm	Green	Standard	Rectangle with Flat Top	565 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783YD	Radial	7 mm	2.3 mm	Diffused	110 °	2.1 V	4 mcd	Yellow	20 mA	8 mm	Yellow	Standard	Rectangle with Flat Top	585 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783SYD	Radial	7 mm	2.3 mm	Diffused	110 °	2.1 V	160 mcd	Yellow	20 mA	8 mm	Yellow	Standard	Rectangle with Flat Top	585 nm	Rectangular 2.3mmx7mm	Through Hole
Lumex Opto/Components Inc. SSL-LX25783AD	Radial	7 mm	2.3 mm	Diffused	110 °	2 V	10 mcd	Amber	20 mA	8 mm	Amber	Standard	Rectangle with Flat Top	605 nm	Rectangular 2.3mmx7mm	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.30
		10	$ 0.19
		100	$ 0.11
		1000	$ 0.08
		2000	$ 0.08

Description

General part information

SSL-LX25783 Series

Green LED Indication - Discrete 2V Radial

Documents

Technical documentation and resources

No documents available
