FJ-15-R-40.00-4

Active

Samtec Inc.

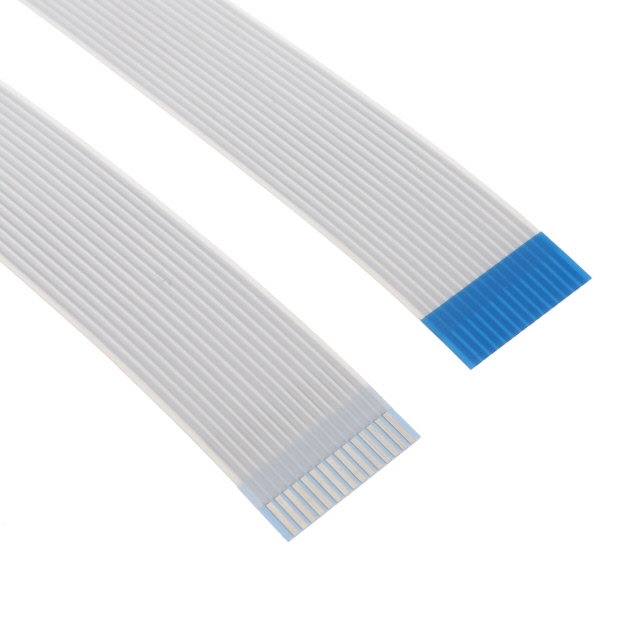

CABLE FFC/FPC 15POS 1MM 40"

Search across all available documentation for this part.

Active

Samtec Inc.

CABLE FFC/FPC 15POS 1MM 40"

Technical Specifications

Parameters and characteristics for this part

Specification	FJ-15-R-40.00-4

Cable Type	FPC, FFC
Length	40 in
Length	1016 mm
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Number of Conductors	15
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Termination Style	Pitch [x]	Pitch [x]	Number of Conductors	Length	Length	Length [x]	Length [x]
Samtec Inc. FJ-15-R-03.82-4	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.039 in	1 mm	15
Samtec Inc. FJ-15-R-05.00-4	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.039 in	1 mm	15	5 in	127 mm
Samtec Inc. FJ-15-R-12.00-4	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.039 in	1 mm	15		304.8 mm	12 in
Samtec Inc. FJ-15-R-11.81-4	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.039 in	1 mm	15	11.8 in	300 mm
Samtec Inc. FJ-15-R-02.00-4	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.039 in	1 mm	15	2 in	50.8 mm
Samtec Inc. FJ-15-R-19.50-4	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.039 in	1 mm	15	19.5 "	495.3 mm
Samtec Inc. FJ-15-R-04.00-4	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.039 in	1 mm	15	4 in	101.6 mm
Samtec Inc. FJ-15-R-40.00-4	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.039 in	1 mm	15	40 in	1016 mm
Samtec Inc. FJ-15-R-11.00-4	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.039 in	1 mm	15			11 in	279.4 mm
Samtec Inc. FJ-15-R-03.97-4	FFC FPC	4 mm	0.157 in	Backers on Both Sides Top on Both Sides	0.039 in	1 mm	15

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.86

General part information

15 Position FFC, FPC Cable 0.039" (1.00mm) 40.0" (1016.0mm)
