953119-1

Active

TE Connectivity AMP Connectors

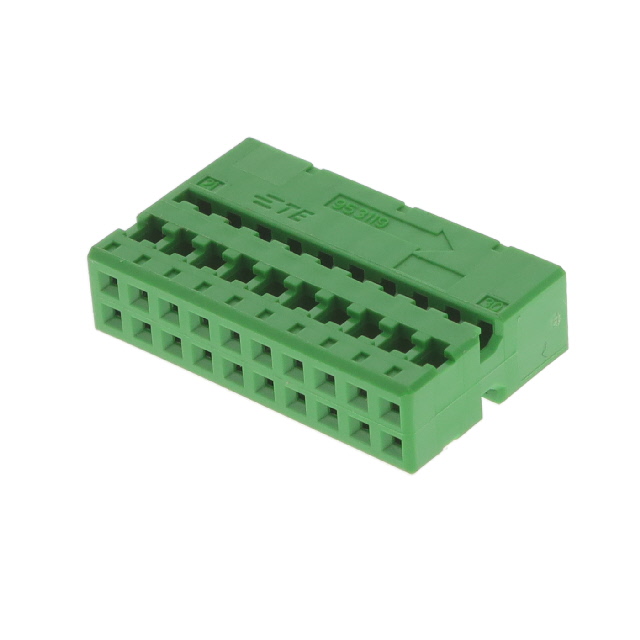

CONN RCPT HSG 20POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 20POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	953119-1

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Number of Rows	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

CONN RCPT HSG 20POS 2.54MM

Part	Contact Termination	Insulation Material	Mounting Type	Number of Positions	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Number of Rows	Connector Type	Contact Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Note
TE Connectivity AMP Connectors 953119-1	Crimp	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	20	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Receptacle	Female Socket	Green	100 °C	-40 °C	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Rectangular Connectors - Housings Receptacle Green 0.100" (2.54mm)
