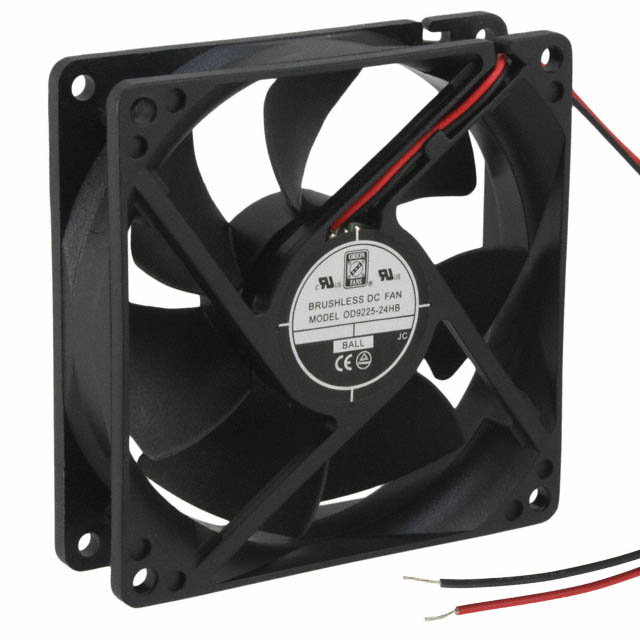

OD9225-24HB
ActiveOrion Fans
DC AXIAL FAN, BALL, 60.2CFM, 0.18A, 24V ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMiscellaneous EN
OD9225-24HB
ActiveOrion Fans
DC AXIAL FAN, BALL, 60.2CFM, 0.18A, 24V ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsMiscellaneous EN
Technical Specifications
Parameters and characteristics for this part
| Specification | OD9225-24HB |
|---|---|
| Air Flow | 53 CFM |
| Air Flow | 1.48 mł/min |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 150 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 35 dB |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 2900 RPM |
| Size / Dimension [x] | 92.5 mm |
| Size / Dimension [z] | 92.5 mm |
| Static Pressure | 0.13 in H2O |
| Static Pressure | 32.4 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 12 VDC |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
OD9225-24HB
Fan Tubeaxial 24VDC Square - 92.5mm L x 92.5mm H Ball 53.0 CFM (1.48m³/min) 2 Wire Leads
