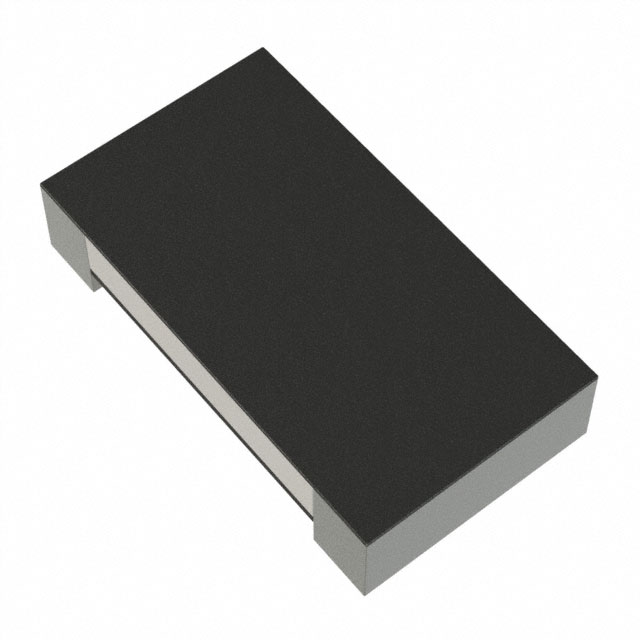

PE0805JRE070R015Z
ActiveYAGEO
RES 0.015 OHM 5% 1/8W 0805
Deep-Dive with AI
Search across all available documentation for this part.
PE0805JRE070R015Z
ActiveYAGEO
RES 0.015 OHM 5% 1/8W 0805
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PE0805JRE070R015Z |
|---|---|
| Features | Current Sense |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Power (Watts) | 0.125 W |
| Power (Watts) | 0.125 W |
| Resistance | 15 mOhms |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 0805 |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.05 | |
Description
General part information
PE0805JRE070R015Z
15 mOhms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Current Sense Metal Foil
