53C3100
ObsoleteHoneywell Sensing and Productivity Solutions
POT 100 OHM 2W PLASTIC LINEAR
53C3100
ObsoleteHoneywell Sensing and Productivity Solutions
POT 100 OHM 2W PLASTIC LINEAR
Description
General part information
53C3100

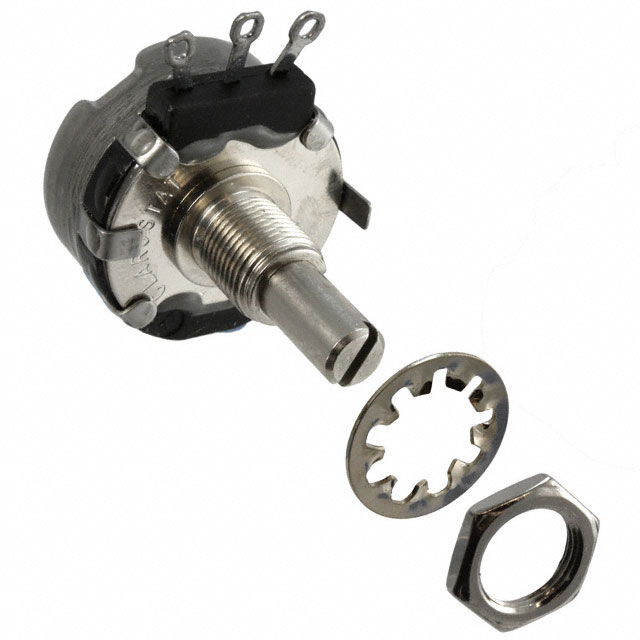

100 Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 2W Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | 53C3100 |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Length | 0.875 in |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | 3/8-32 |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 2 w |
| Resistance | 100 Ohms |
| Resistive Material | Conductive Plastic |
| Rotation | 312 ° |
| Size - Body Diameter | 1.094 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | 10 % |
