SSL-LX3052YD
ActiveLumex Opto/Components Inc.

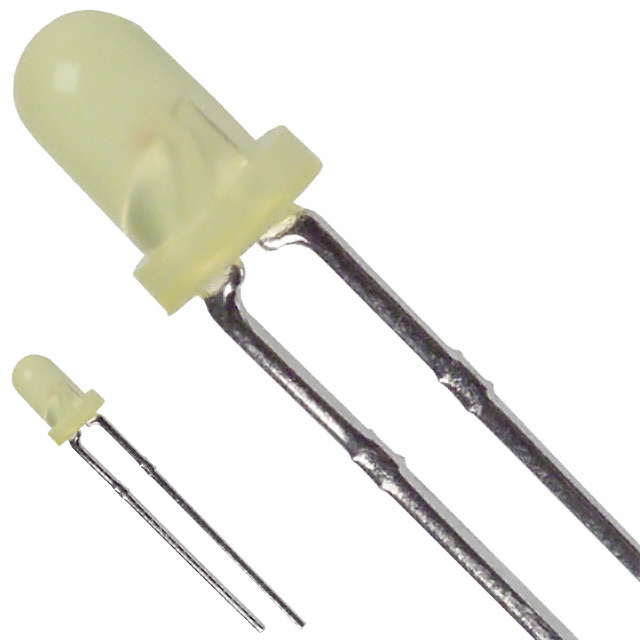

LED YELLOW DIFFUSED T-1 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSL-LX3052YD
ActiveLumex Opto/Components Inc.
LED YELLOW DIFFUSED T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SSL-LX3052YD | SSL-LX3052 Series |
|---|---|---|
| Color | Yellow | Red, Green, Yellow |
| Configuration | Standard | Standard |
| Current - Test | 20 mA | 20 mA |
| Height (Max) [Max] [z] | 5.25 mm | 5.25 mm |
| Lens Color | Yellow | Red, Green, Yellow |
| Lens Size | 3 mm | 3 mm |
| Lens Size | T-1 | T-1 |
| Lens Style | Round with Domed Top | Round with Domed Top |
| Lens Transparency | Diffused | Diffused |
| Millicandela Rating | 15 mcd | 15 - 30 mcd |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Supplier Device Package | T-1 | T-1 |
| Viewing Angle | 80 ° | 60 - 80 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V | 2 - 2.1 V |
| Wavelength - Peak | 585 nm | 565 - 635 nm |
SSL-LX3052 Series
LED RED DIFFUSED T-1 T/H
| Part | Lens Size | Lens Size | Wavelength - Peak | Lens Transparency | Mounting Type | Configuration | Color | Supplier Device Package | Package / Case | Lens Style | Current - Test | Voltage - Forward (Vf) (Typ) | Viewing Angle | Height (Max) [Max] [z] | Millicandela Rating | Lens Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SSL-LX3052ID | 3 mm | T-1 | 635 nm | Diffused | Through Hole | Standard | Red | T-1 | Radial | Round with Domed Top | 20 mA | 2.1 V | 60 ° | 5.25 mm | 30 mcd | Red |
Lumex Opto/Components Inc. SSL-LX3052GD | 3 mm | T-1 | 565 nm | Diffused | Through Hole | Standard | Green | T-1 | Radial | Round with Domed Top | 20 mA | 2 V | 80 ° | 5.25 mm | 15 mcd | Green |
Lumex Opto/Components Inc. SSL-LX3052YD | 3 mm | T-1 | 585 nm | Diffused | Through Hole | Standard | Yellow | T-1 | Radial | Round with Domed Top | 20 mA | 2.1 V | 80 ° | 5.25 mm | 15 mcd | Yellow |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.42 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| 2000 | $ 0.10 | |||
| 5000 | $ 0.09 | |||
| 10000 | $ 0.09 | |||
| 25000 | $ 0.09 | |||
Description
General part information
SSL-LX3052 Series
Yellow LED Indication - Discrete 2.1V Radial
