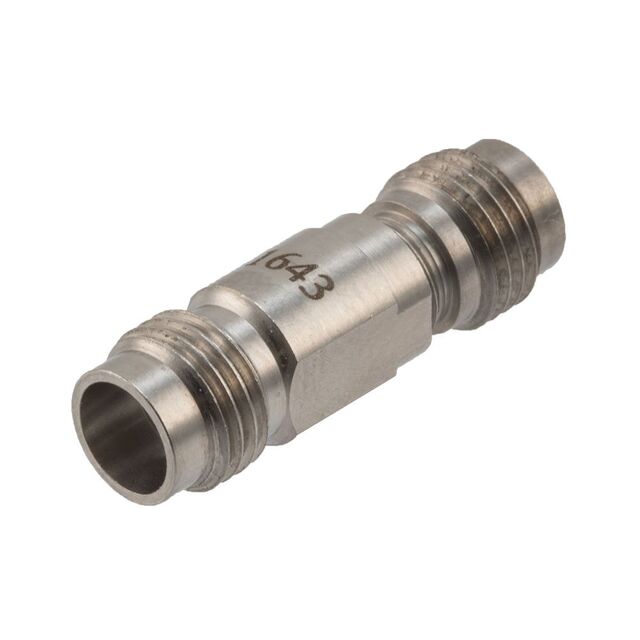

FMAD1643
ActiveFairview Microwave
ADAPT JACK-JACK 2.4MM SS 1.3 VSW
FMAD1643
ActiveFairview Microwave
ADAPT JACK-JACK 2.4MM SS 1.3 VSW
Description
General part information
FMAD1643
Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1643 |
|---|---|
| Adapter Series Size | 2.4 mm |
| Adapter Type | Jack to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) Jack Size | 2.4 mm |
| Convert From (Adapter End) Type | Female Socket, APC-2.4, OS-50 |
| Convert To (Adapter End) | Female Socket, Jack |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Model | APC-2.4, OS-50 |
| Convert To (Adapter End) Series | OS-50, APC-2.4 |
| Convert To (Adapter End) Size | 2.4 mm |
| Convert To (Adapter End) Type | Jack, Female Socket, 2.4mm (APC-2.4, OS-50) Jack |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded |
| Frequency - Max | 50 GHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.29 dB |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -50 °C |
| Style | Straight |
