ATCA-07-301M-V
ActiveAbracon LLC
FIXED IND 300UH 2A 142 MOHM TH
ATCA-07-301M-V
ActiveAbracon LLC
FIXED IND 300UH 2A 142 MOHM TH
Description
General part information
ATCA-07-301M-V

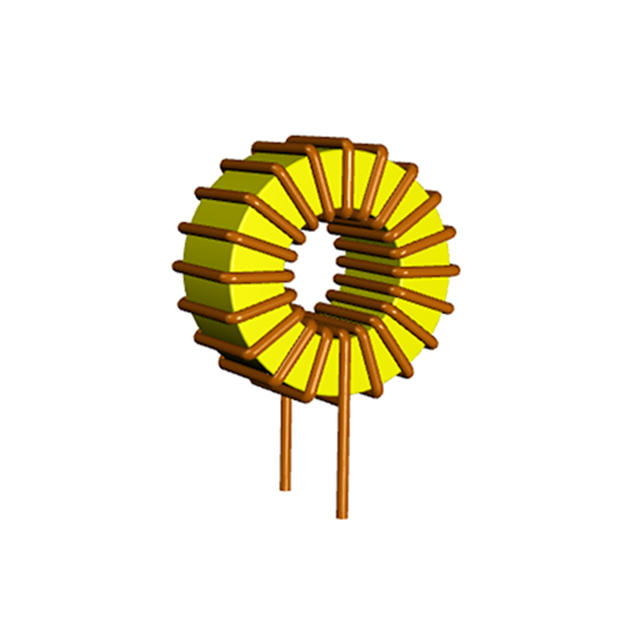

300 µH Unshielded Toroidal Inductor 2 A 142mOhm Max Radial, Vertical (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | ATCA-07-301M-V |
|---|---|
| Current Rating | 2 A |
| DC Resistance (DCR) (Max) | 142 mOhm |
| Inductance | 300 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Vertical (Open) |
| Shielding | Unshielded |
| Size / Dimension Length | 1.417 in |
| Size / Dimension Width | 0.768 in |
| Tolerance | 20 % |
| Type | Toroidal |
