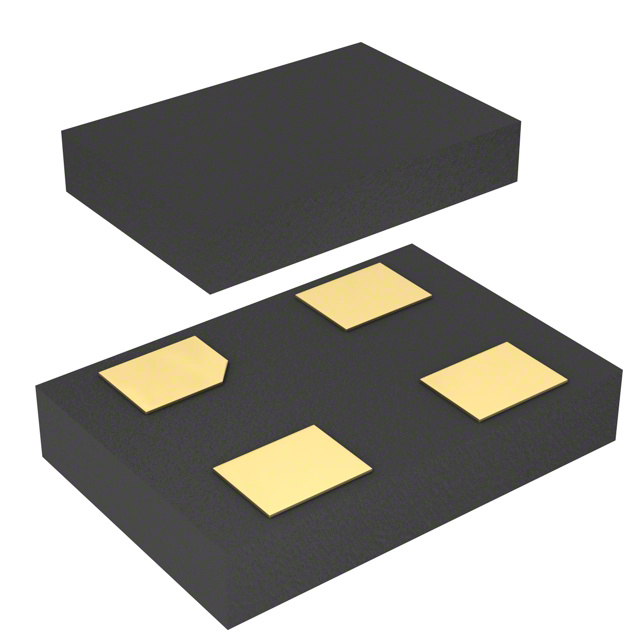

501EAA48M0000BAFR
ObsoleteSilicon Labs
OSC CMEMS 48.0000MHZ LVCMOS
Deep-Dive with AI
Search across all available documentation for this part.
501EAA48M0000BAFR
ObsoleteSilicon Labs
OSC CMEMS 48.0000MHZ LVCMOS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 501EAA48M0000BAFR |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) [Max] | 2.5 mA |
| Current - Supply (Max) [Max] | 2.5 mA |
| Frequency | 48 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output | LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Type | CMEMS® |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
501EAA48M0000BAFR
48 MHz CMEMS® LVCMOS Oscillator 1.7V ~ 3.6V Enable/Disable 4-SMD, No Lead
Documents
Technical documentation and resources
No documents available
