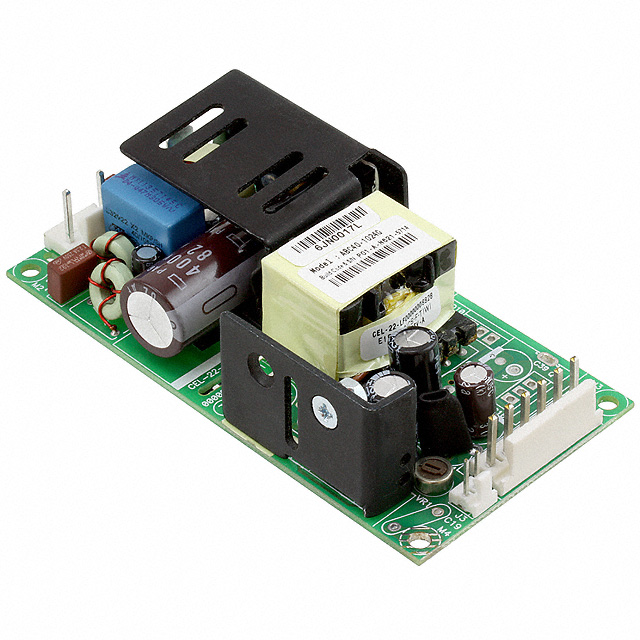

ABC40-1024G

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 24V 1.7A 40W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 24V 1.7A 40W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABC40-1024G	ABC40 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output 1	1.7 A	1.7 - 8 A
Current - Output 2	-	2 A
Current - Output 3	-	500 mA
Efficiency	85 %	85 %
Features	Universal Input, Standby Output, Adjustable Output, Remote Sense	Universal Input, Standby Output, Adjustable Output, Remote Sense
Minimum Load Required	False	False, True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1 - 3
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	40 W	40 W
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [x]	4 in	4 in
Size / Dimension [y]	2 in	2 in
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [z]	30.5 mm	30.5 mm
Size / Dimension [z]	1.2 "	1.2 "
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4.242 kV	4.242 kV
Voltage - Output 1	24 V	5.1 - 24 V
Voltage - Output 2	-	12.5 V
Voltage - Output 3	-	-12.8 V

AC/DC POWER SUPPLY SINGLE-OUT 5.1V 8A 40W

Part	Type	Features	Mounting Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Voltage - Output 1	Number of Outputs	Efficiency	Current - Output 3	Current - Output 2	Voltage - Output 3	Voltage - Output 2
Bel Power Solutions ABC40-1005G	Open Frame	Adjustable Output, Remote Sense, Standby Output, Universal Input	Chassis Mount	40 W	-20 °C	70 °C	4.242 kV	90 VAC	264 VAC	ITE (Commercial)	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	8 A	5.1 V	1	85 %
Bel Power Solutions ABC40-1024G	Open Frame	Adjustable Output, Remote Sense, Standby Output, Universal Input	Chassis Mount	40 W	-20 °C	70 °C	4.242 kV	90 VAC	264 VAC	ITE (Commercial)	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	1.7 A	24 V	1	85 %
Bel Power Solutions ABC40-3000G	Open Frame	Adjustable Output, Remote Sense, Standby Output, Universal Input	Chassis Mount	40 W	-20 °C	70 °C	4.242 kV	90 VAC	264 VAC	ITE (Commercial)	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	6 A	5.2 V	3	85 %	500 mA	2 A	-12.8 V	12.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
