Description
General part information
- Series

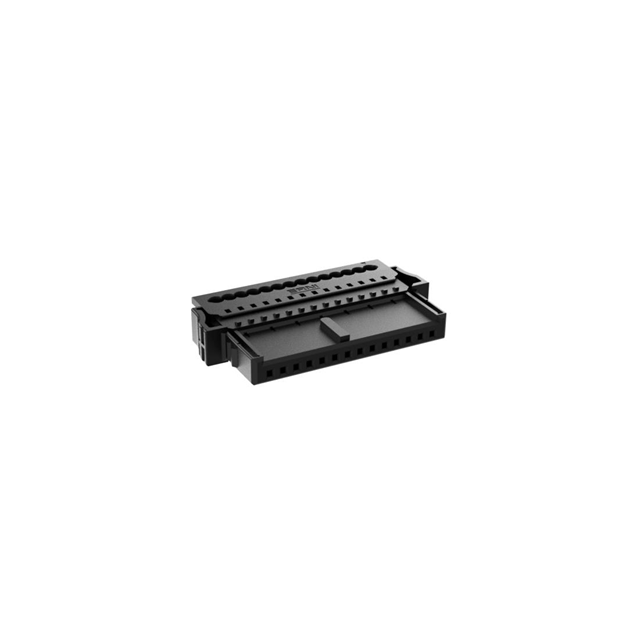

Connector Assembly, Receptacle, Cable-to-Board, 14 Position, 1.27 mm [.05 in] Centerline, Insulation Displacement (IDC), 1 Row, ERNI MicroBridge
Technical Specifications
Parameters and characteristics for this part
| Specification | 524491-E |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Pitch | 0.05 in |
| Wire Type | Ribbon Cable, Discrete |
