1.15.108.976/0000

Active

RAFI USA

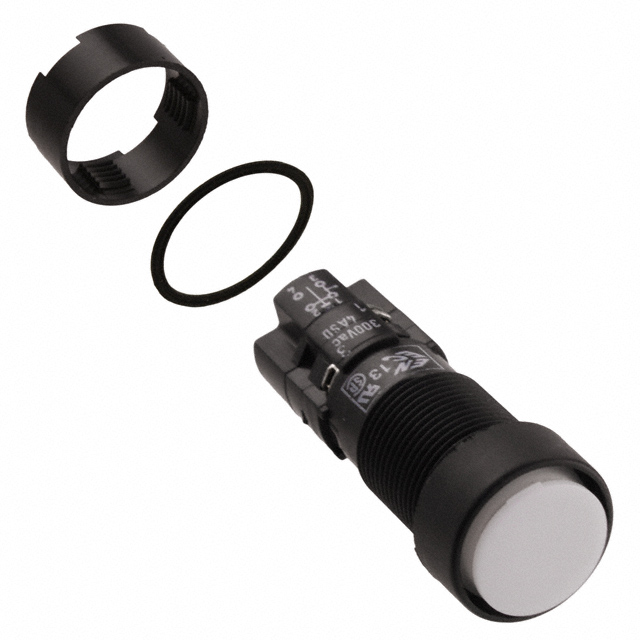

SWITCH PUSHBUTTON DPST 4A 250V

Deep-Dive with AI

Search across all available documentation for this part.

1.15.108.976/0000

Active

RAFI USA

SWITCH PUSHBUTTON DPST 4A 250V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.15.108.976/0000	1.15108 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button, Rectangular, Button, Flat Key, Square
Angle of Throw	-	45 - 90 °
Circuit	DPST-NO/NC	DPST-NO/NC, 4PST-2NO/2NC
Contact Material	-	Silver (Ag)
Contact Timing	-	Not Specified
Current Rating (Amps)	4 A, 200 mA	4 - 200 A
Electrical Life	-	50000 Cycles
Features	-	IP40
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant, IP40
Key Removable Positions	-	Center, All
Mounting Type	Panel Mount, Front	Panel Mount, Front
Number of Positions	-	2
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm	16.2 mm
Switch Function	On-Off, Off-On	Off-Mom, On-Mom, On-Off, Off-On
Termination Style	Solder Lug	Solder Lug
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	230 V	230 V

1.15108 Series

SWITCH PUSH DPST 4A 250V

Part	Voltage Rating - AC	Type	Actuator Marking	Termination Style	Actuator Type	Panel Cutout Dimensions [diameter]	Mounting Type	Ingress Protection	Voltage Rating - DC	Switch Function	Circuit	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Angle of Throw	Contact Timing	Number of Positions	Features	Key Removable Positions	Contact Material
RAFI USA 1.15.108.476/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Button, Round	16.2 mm	Panel Mount, Front	IP65 - Dust Tight, Water Resistant	230 V	Off-Mom, On-Mom	DPST-NO/NC	4 A, 200 mA	70 °C	-25 °C
RAFI USA 1.15.108.977/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Button, Round	16.2 mm	Panel Mount, Front	IP65 - Dust Tight, Water Resistant	230 V	Off-On, On-Off	4PST-2NO/2NC	4 A, 200 mA	70 °C	-25 °C	50000 Cycles
RAFI USA 1.15.108.452/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Button, Round	16.2 mm	Panel Mount, Front	IP40	230 V	Off-Mom, On-Mom	4PST-2NO/2NC	4 A, 200 mA	70 °C	-25 °C
RAFI USA 1.15.108.552/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Button, Round	16.2 mm	Panel Mount, Front	IP40	230 V	Off-On, On-Off	4PST-2NO/2NC	4 A, 200 mA	70 °C	-25 °C
RAFI USA 1.15.108.176/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Rectangular, Button	16.2 mm	Panel Mount, Front	IP65 - Dust Tight, Water Resistant	230 V	Off-On, On-Off	DPST-NO/NC	4 A, 200 mA	70 °C	-25 °C	50000 Cycles
RAFI USA 1.15.108.152/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Rectangular, Button	16.2 mm	Panel Mount, Front	IP40	230 V	Off-On, On-Off	4PST-2NO/2NC	4 A, 200 mA	70 °C	-25 °C
RAFI USA 1.15.108.661/0100	250 V			Solder Lug	Flat Key	16.2 mm			230 V	Off-Mom, On-Mom	DPST-NO/NC	4 A, 200 mA	70 °C	-25 °C		90 °	Not Specified	2	IP40	Center	Silver (Ag)
RAFI USA 1.15.108.941/0000	250 V			Solder Lug	Flat Key	16.2 mm			230 V	Off-Mom, On-Mom	DPST-NO/NC	4 A, 200 mA	70 °C	-25 °C	50000 Cycles	45 °	Not Specified	2	IP40	Center	Silver (Ag)
RAFI USA 1.15.108.377/0000	250 V	Illuminated, Standard	No Marking	Solder Lug		16.2 mm	Panel Mount, Front	IP65 - Dust Tight, Water Resistant	230 V	Off-On, On-Off	4PST-2NO/2NC	4 A, 200 mA	70 °C	-25 °C
RAFI USA 1.15.108.177/0000	250 V	Illuminated, Standard	No Marking	Solder Lug	Rectangular, Button	16.2 mm	Panel Mount, Front	IP65 - Dust Tight, Water Resistant	230 V	Off-On, On-Off	4PST-2NO/2NC	4 A, 200 mA	70 °C	-25 °C	50000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.73
		10	$ 27.81

Description

General part information

1.15108 Series

Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
