FPG.2B.306.CLAD72
ActiveLEMO

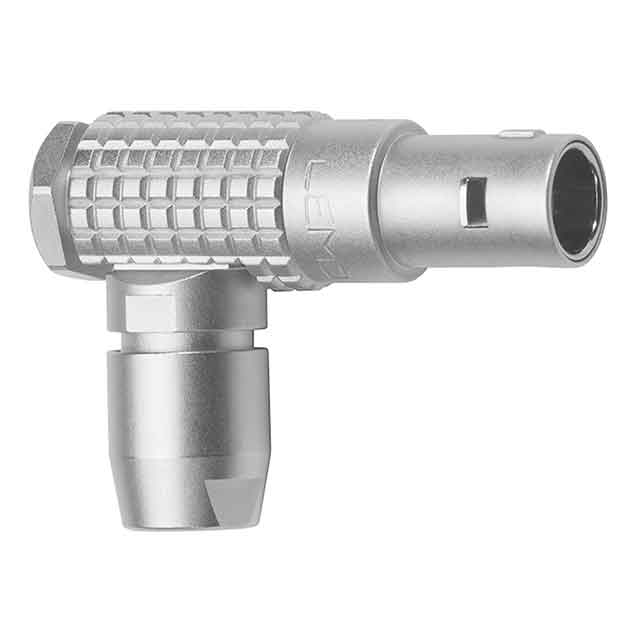

CONN PLUG MALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FPG.2B.306.CLAD72
ActiveLEMO
CONN PLUG MALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FPG.2B.306.CLAD72 | FPG.2B Series |
|---|---|---|
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome |
| Cable Opening [diameter] | 0.205 in, 0.165 in | 0.165 - 0.205 in |
| Cable Opening [diameter] | 4.2 mm | 4.2 mm |
| Cable Opening [diameter] | 5.2 mm | 5.2 mm |
| Color | Silver | Silver |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 12 A | 6.5 - 25 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 6 | 2 - 14 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 306 | 302 - 314 |
| Shielding | Shielded | Shielded |
| Termination | - | Crimp |
FPG.2B Series
CONN PLUG MALE 2POS GOLD CRIMP
| Part | Ingress Protection | Backshell Material, Plating | Color | Mounting Type | Current Rating (Amps) | Termination | Insert Material | Shell Finish | Number of Positions | Shielding | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Shell Size - Insert | Fastening Type | Orientation | Primary Material | Connector Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Material Flammability Rating | Contact Material | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP50 | Brass, Chrome | Silver | Free Hanging (In-Line), Right Angle | 25 A | Crimp | Polyetheretherketone (PEEK) | Chrome | 2 | Shielded | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | 302 | Push-Pull | G | Metal | Male Pins, Plug | Backshell | -55 °C | 250 °C | 1 µm | 39.4 µin | Gold | UL94 V-0 | Brass | Brass | |
IP50 | Brass, Chrome | Silver | Free Hanging (In-Line), Right Angle | 12 A | Polyetheretherketone (PEEK) | Chrome | 6 | Shielded | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | 306 | Push-Pull | G | Metal | Male Pins, Plug | Backshell | -55 °C | 250 °C | 1 µm | 39.4 µin | Gold | UL94 V-0 | Brass | Brass | ||
IP50 | Brass, Chrome | Silver | Free Hanging (In-Line), Right Angle | 6.5 A | Polyetheretherketone (PEEK) | Chrome | 14 | Shielded | 0.165 in, 0.205 in | 4.2 mm | 5.2 mm | 314 | Push-Pull | G | Metal | Male Pins, Plug | Backshell | -55 °C | 250 °C | 1 µm | 39.4 µin | Gold | UL94 V-0 | Brass | Brass |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 117.37 | |
| 10 | $ 107.71 | |||
| 25 | $ 103.57 | |||
| 50 | $ 100.11 | |||
| 100 | $ 94.59 | |||
Description
General part information
FPG.2B Series
6 Position Circular Connector Plug, Male Pins Solder Cup
