2834083
ActivePhoenix Contact

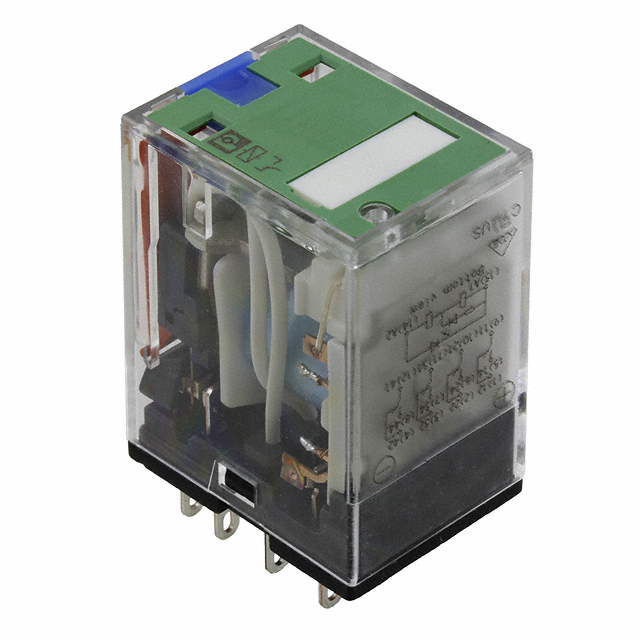

RELAY GEN PURPOSE 4PDT 5A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2834083
ActivePhoenix Contact
RELAY GEN PURPOSE 4PDT 5A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2834083 | 28340 Series |
|---|---|---|
| Approval Agency | VDE, UL, EAC, cULus | VDE, UL, EAC, cULus |
| Coil Current | 75 mA | 19 - 75 mA |
| Coil Resistance | 160 Ohms | 18.79 - 2560 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 12 - 230 VDC |
| Contact Form | 4PDT (4 Form C) | DPDT (2 Form C), 4PDT (4 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver (Ag), Silver Nickel (AgNi) |
| Contact Rating (Current) | 5 A | 5 - 10 A |
| Features | - | Lighted Indicator, Diode, Test Button |
| Mounting Type | Socketable | Socketable |
| Operate Time | 13 ms | 10 - 13 ms |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 5 ms | 5 - 12 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Plug In | Plug In |
28340 Series
RELAY GEN PURPOSE DPDT 10A 48V
| Part | Coil Voltage | Relay Type | Switching Voltage | Termination Style | Mounting Type | Contact Material | Contact Rating (Current) | Coil Current | Approval Agency | Operate Time | Release Time | Features | Coil Type | Contact Form | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2834038 | 48 VDC | General Purpose | 250 VAC, 250 VDC | Plug In | Socketable | Silver (Ag) | 10 A | 19 mA | cULus, EAC, UL, VDE | 13 ms | 5 ms | Diode, Lighted Indicator, Test Button | Non Latching | DPDT (2 Form C) | 2560 Ohms | 70 °C | -55 °C |
Phoenix Contact 2834012 | 12 VDC | General Purpose | 250 VAC, 250 VDC | Plug In | Socketable | Silver (Ag) | 10 A | 75 mA | cULus, EAC, UL, VDE | 13 ms | 5 ms | Non Latching | DPDT (2 Form C) | 160 Ohms | 70 °C | -55 °C | |
Phoenix Contact 2834096 | 24 VDC | General Purpose | 250 VAC, 250 VDC | Plug In | Socketable | Silver Nickel (AgNi) | 5 A | 38 mA | cULus, EAC, UL, VDE | 13 ms | 5 ms | Non Latching | 4PDT (4 Form C) | 636 Ohms | 70 °C | -55 °C | |
Phoenix Contact 2834025 | 24 VDC | General Purpose | 250 VAC, 250 VDC | Plug In | Socketable | Silver (Ag) | 10 A | 38 mA | cULus, EAC, UL, VDE | 13 ms | 5 ms | Diode, Lighted Indicator, Test Button | Non Latching | DPDT (2 Form C) | 636 Ohms | 70 °C | -55 °C |
Phoenix Contact 2834083 | 12 VDC | General Purpose | 250 VAC, 250 VDC | Plug In | Socketable | Silver Nickel (AgNi) | 5 A | 75 mA | cULus, EAC, UL, VDE | 13 ms | 5 ms | Non Latching | 4PDT (4 Form C) | 160 Ohms | 70 °C | -55 °C | |
Phoenix Contact 2834070 | 230 VAC | General Purpose | 250 VAC, 250 VDC | Plug In | Socketable | Silver (Ag) | 10 A | cULus, EAC, UL, VDE | 10 ms | 12 ms | Non Latching | DPDT (2 Form C) | 18.79 kOhms | 70 °C | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
28340 Series
General Purpose Relay 4PDT (4 Form C) 12VDC Coil Socketable
