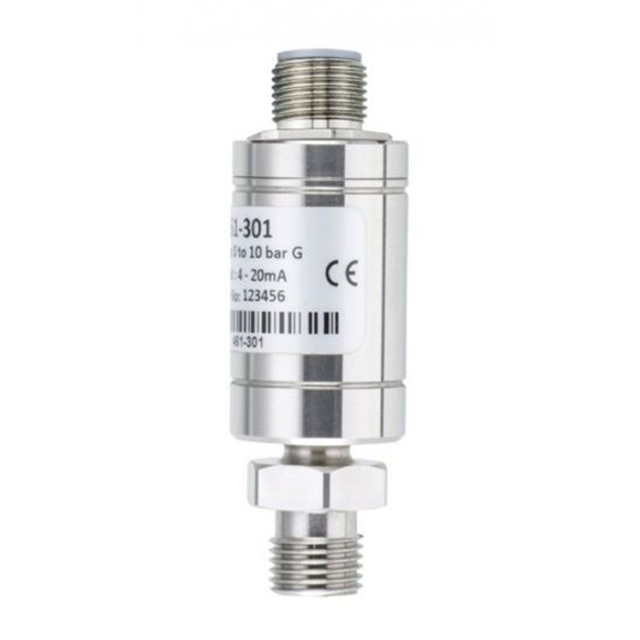

IPS-G2502-6M12

Obsolete

Sensata Technologies

PRESSURE SENSOR 0-25BARG 1/4" BS

Search across all available documentation for this part.

Obsolete

Sensata Technologies

PRESSURE SENSOR 0-25BARG 1/4" BS

Technical Specifications

Parameters and characteristics for this part

Specification	IPS-G2502-6M12

Accuracy	0.25 %
Applications	Industrial Automation
Features	Temperature Compensated, Amplified Output
Operating Pressure	25 bar
Operating Pressure	362.59 PSI
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Output [Max]	5 V
Output [Min]	0 mV
Output Type	Analog Voltage
Package / Case	Cylinder, Threaded - M12
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Connector
Voltage - Supply [Max]	32 VDC
Voltage - Supply [Min]	9 V

Part	Output [Max]	Output [Min]	Output Type	Features	Package / Case	Accuracy	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Pressure Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Pressure	Operating Pressure	Port Style	Termination Style
Sensata Technologies IPS-G2502-6M12	5 V	0 mV	Analog Voltage	Amplified Output Temperature Compensated	Cylinder Threaded - M12	0.25 %	Industrial Automation	-20 C	80 C	Vented Gauge	9 V	32 VDC	25 bar	362.59 PSI	Threaded	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PRESSURE SENSOR 0-25BARG 1/4" BS

Technical documentation and resources
