2260 SL005

Active

ALPHA WIRE

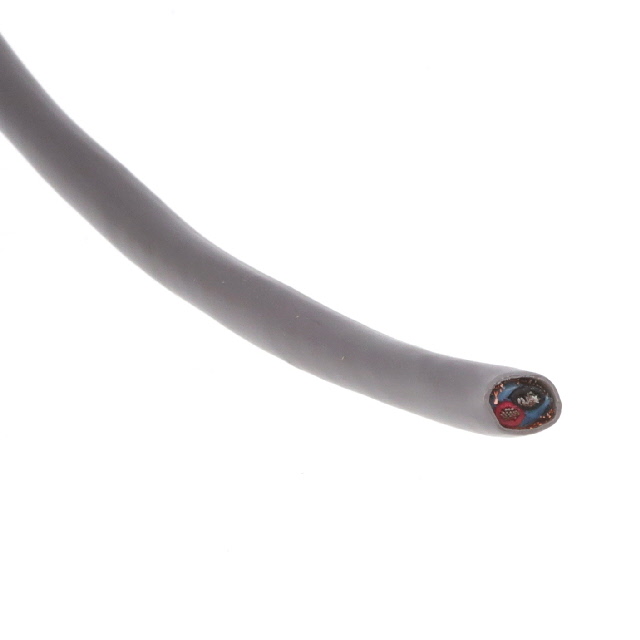

CABLE 2CON 16AWG SLATE SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2CON 16AWG SLATE SHLD 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2260 SL005	2260 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	30 AWG	30 AWG
Conductor Strand [custom]	26	26
Jacket (Insulation) Diameter [diameter]	0.24 in	0.24 in
Jacket (Insulation) Diameter [diameter]	6.1 mm	6.1 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 ft
Number of Conductors	2	2
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	95 %	95 %
Shield Material	Copper, Bare	Copper, Bare
Shield Type	Spiral	Spiral
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	16 AWG	16 AWG

CABLE 2CON 16AWG SLATE SHLD 100'

Part	Usage	Length [x]	Length [x]	Jacket Color	Cable Type	Voltage	Shield Coverage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Shield Material	Wire Gauge	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type
ALPHA WIRE 2260 SL005	Communication, Control	30.5 m	100 ft	Slate	Multi-Conductor	300 V	95 %	Poly-Vinyl Chloride (PVC)	30 AWG	26	-20 C	80 C	Copper, Tinned	Copper, Bare	16 AWG	Poly-Vinyl Chloride (PVC)	0.02 in	0.508 mm	2	0.24 in	6.1 mm	Spiral
ALPHA WIRE 2260 SL002	Communication, Control	152.4 m	500 '	Slate	Multi-Conductor	300 V	95 %	Poly-Vinyl Chloride (PVC)	30 AWG	26	-20 C	80 C	Copper, Tinned	Copper, Bare	16 AWG	Poly-Vinyl Chloride (PVC)	0.02 in	0.508 mm	2	0.24 in	6.1 mm	Spiral

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Slate 16 AWG Spiral 100.0' (30.5m)
