XHP50B-00-0000-0D0HH227G-SB01

Active

New Energy

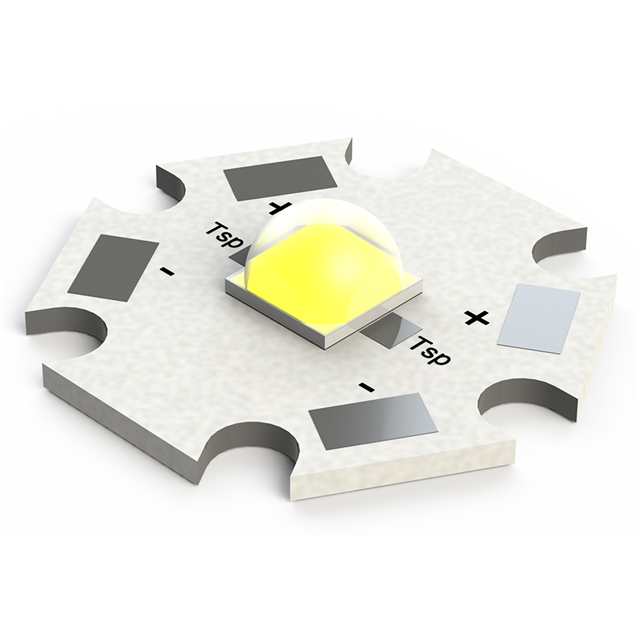

LED MOD XHP50.2 WH STARBD 2700K

Search across all available documentation for this part.

Active

New Energy

LED MOD XHP50.2 WH STARBD 2700K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XHP50B-00-0000-0D0HH227G-SB01	XHP50B Series

CCT (K)	2700 K	2700 - 4000 K
Color	White, Warm	Neutral, White, Warm
Configuration	Starboard	Starboard
CRI (Color Rendering Index)	80	70 - 80
Current - Max [Max]	1.5 A	1.5 A
Lens Type	Domed	Domed
Lumens/Watt @ Current - Test	115 lm/W	115 - 143 lm/W
Luminous Flux @ Current/Temperature	900 lm	900 - 1120 lm
Size / Dimension [diameter]	19.89 mm	19.89 mm
Temperature - Test	85 °C	85 °C
Type	LED Module	LED Module
Voltage - Forward (Vf) (Typ)	11.2 V	11.2 V

LED MOD XHP50.2 WH STARBD 4000K

Part	Current - Max [Max]	Type	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Color	Lens Type	Temperature - Test	Voltage - Forward (Vf) (Typ)	Configuration	CCT (K)	Size / Dimension [diameter]
New Energy XHP50B-00-0000-0D0BJ440E-SB01	1.5 A	LED Module	143 lm/W	1120 lm	70	Neutral, White	Domed	85 °C	11.2 V	Starboard	4000 K	19.89 mm
New Energy XHP50B-00-0000-0D0HH227G-SB01	1.5 A	LED Module	115 lm/W	900 lm	80	Warm, White	Domed	85 °C	11.2 V	Starboard	2700 K	19.89 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module XHP50.2 White, Warm Starboard

Technical documentation and resources

No documents available
