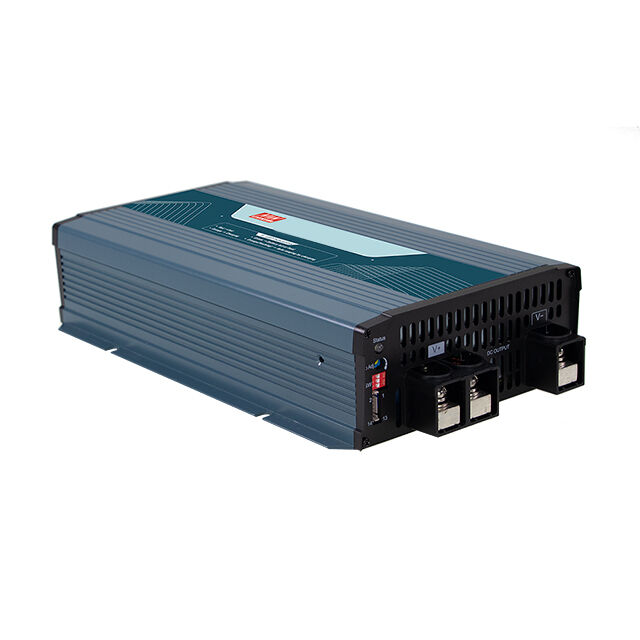

NPB-1700-12
ActiveMEAN WELL USA Inc.
BATT CHG ENCLOSED 10.5V21V 85A
NPB-1700-12
ActiveMEAN WELL USA Inc.
BATT CHG ENCLOSED 10.5V21V 85A
Description
General part information
NPB-1700-12
Enclosed Battery Charger 10.5V ~ 21V 85A 12V
Technical Specifications
Parameters and characteristics for this part
| Specification | NPB-1700-12 |
|---|---|
| Approval Agency | cURus, UKCA, EAC, CE, CB |
| Battery Cell Voltage | 12 V |
| Battery Chemistry | Lead Acid, Lithium-Ion |
| Charge Current - Max | 85 A |
| Mounting Type | Chassis Mount |
| Number of Cells | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power - Max | 1.428 kW |
| Size / Dimension Height | 2.76 in |
| Size / Dimension Length | 11.81 in |
| Size / Dimension Width | 7.24 in |
| Termination Style | Screw Terminal |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 127 VDC |
| Voltage - Nominal (Max) | 21 V |
| Voltage - Nominal (Min) | 10.5 V |
