9487 010500
ActiveBelden Inc.

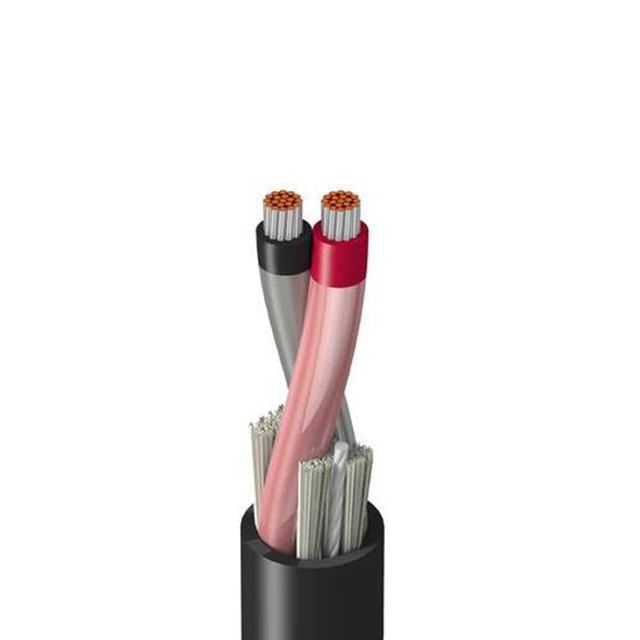

CABLE 2COND 16AWG BLACK
Deep-Dive with AI
Search across all available documentation for this part.
9487 010500
ActiveBelden Inc.
CABLE 2COND 16AWG BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9487 010500 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 19 Strands |
| Conductor Strand [custom] | 29 AWG |
| Features | Rip Cord |
| Jacket (Insulation) Diameter [diameter] | 0.295 in |
| Jacket (Insulation) Diameter [diameter] | 7.49 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.048 in |
| Jacket (Insulation) Thickness | 1.219 mm |
| Jacket Color | Black |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 2 |
| Usage | Instrumentation |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 3.81 | |
Description
General part information
9487 Series
2 (1 Pair) Conductor Multi-Conductor Cable Black 16 AWG 500.0' (152.4m)
