4912
ActiveKeystone Electronics
CONN QC TAB 0.250 SOLDER
4912
ActiveKeystone Electronics
CONN QC TAB 0.250 SOLDER
Description
General part information
4912

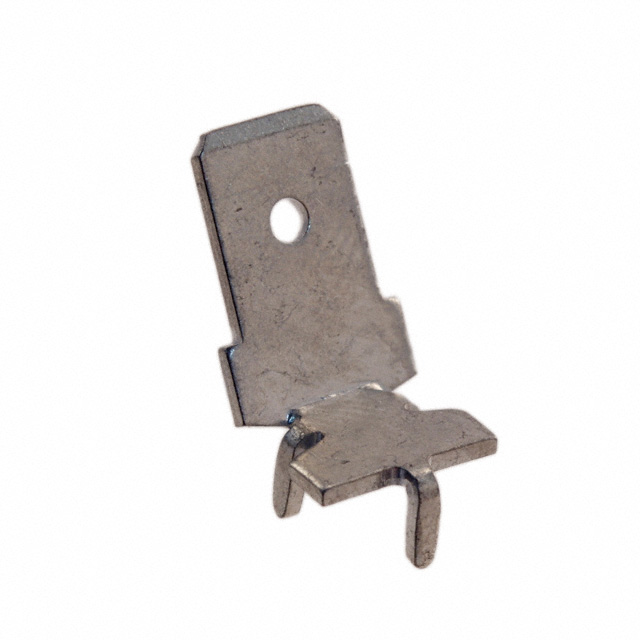

0.250" (6.35mm) Quick Connect Male Solder Connector Non-Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 4912 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | UL Approved |
| Gender | Male |
| Insulation | Non-Insulated |
| Mounting Type | Through Hole |
| Tab Length | 0.313 in |
| Tab Thickness | 0.032 in |
| Tab Width | 0.25 in |
| Terminal Angle | 60 ° |
| Terminal Type | Angled |
| Termination | Solder |
