BVE-A-R0005-1.0 - BVE-A-R0005-1.0

BVE-A-R0005-1.0

Active
Isabellenhuette USA

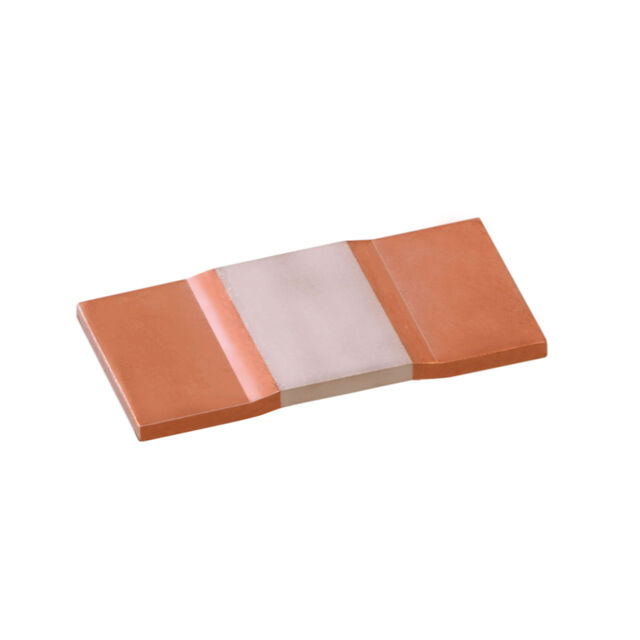

RESISTOR - ISA-WELD SHUNT, 0.000

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSolderability of ISA-Weld, Plan® ShuntsDatasheet
BVE-A-R0005-1.0 - BVE-A-R0005-1.0

BVE-A-R0005-1.0

Active
Isabellenhuette USA

RESISTOR - ISA-WELD SHUNT, 0.000

Deep-Dive with AI

DocumentsSolderability of ISA-Weld, Plan® ShuntsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationBVE-A-R0005-1.0BVE-A Series
FeaturesAutomotive AEC-Q200, Current SenseAutomotive AEC-Q200, Current Sense
Height - Seated (Max)-0.96 mm
Height - Seated (Max)-0.038 - 0.063 in
Height - Seated (Max)-1.6 mm
Height - Seated (Max) [Max] [z]0.091 "0.045 - 0.091 in
Height - Seated (Max) [Max] [z]2.3 mm1.14 - 2.3 mm
Number of Terminations22
Operating Temperature [Max]170 °C170 °C
Operating Temperature [Min]-55 °C-55 °C
Package / CaseNonstandardNonstandard
Power (Watts)10 W3.5 - 10 W
RatingsAEC-Q200AEC-Q200
Resistance0.5 mOhms0.5 - 3 mOhms
Size / Dimension [x]0.591 in0.591 in
Size / Dimension [x]15 mm15 mm
Size / Dimension [y]7.75 mm7.75 mm
Size / Dimension [y]0.305 in0.305 in
Supplier Device Package59305930
Temperature Coefficient75 ppm/°C50 - 75 ppm/°C
Tolerance1 %1 %

BVE-A Series

RESISTOR - ISA-WELD SHUNT, 0.002

PartPower (Watts)Height - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]Package / CaseToleranceRatingsSupplier Device PackageTemperature CoefficientOperating Temperature [Max]Operating Temperature [Min]Size / Dimension [x]Size / Dimension [y]Size / Dimension [y]Size / Dimension [x]FeaturesNumber of TerminationsResistanceHeight - Seated (Max) [Max]Height - Seated (Max) [Max]Height - Seated (Max)
Isabellenhuette USA
BVE-A-R002-1.0
7 W
1.14 mm
0.045 in
Nonstandard
1 %
AEC-Q200
5930
50 ppm/°C
170 °C
-55 °C
0.591 in
7.75 mm
0.305 in
15 mm
Automotive AEC-Q200, Current Sense
2
2 mOhms
Isabellenhuette USA
BVE-A-R003-1.0
3.5 W
Nonstandard
1 %
AEC-Q200
5930
50 ppm/°C
170 °C
-55 °C
0.591 in
7.75 mm
0.305 in
15 mm
Automotive AEC-Q200, Current Sense
2
3 mOhms
0.96 mm
0.038 in
Isabellenhuette USA
BVE-A-R001-1.0
9 W
Nonstandard
1 %
AEC-Q200
5930
50 ppm/°C
170 °C
-55 °C
0.591 in
7.75 mm
0.305 in
15 mm
Automotive AEC-Q200, Current Sense
2
1 mOhms
0.063 in
1.6 mm
Isabellenhuette USA
BVE-A-R0005-1.0
10 W
2.3 mm
0.091 "
Nonstandard
1 %
AEC-Q200
5930
75 ppm/°C
170 °C
-55 °C
0.591 in
7.75 mm
0.305 in
15 mm
Automotive AEC-Q200, Current Sense
2
0.5 mOhms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 5.91
10$ 3.57
25$ 2.96
50$ 2.59
100$ 2.29
250$ 1.95
500$ 1.84
Digi-Reel® 1$ 5.91
10$ 3.57
25$ 2.96
50$ 2.59
100$ 2.29
250$ 1.95
500$ 1.84
Tape & Reel (TR) 2000$ 1.84

Description

General part information

BVE-A Series

0.5 mOhms ±1% 10W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense
